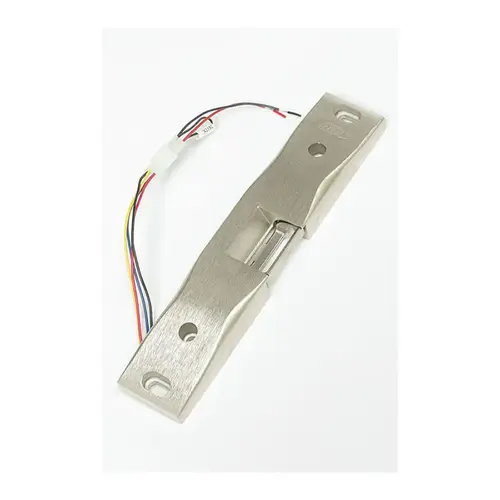

0162 Surface Mounted Electric Strike, 3/4" Rim, 12/24 VDC, 12 to 24VAC, Fail Secure Satin Stainless Steel

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

RCI 0162 32D 0162 Surface Mounted Electric Strike, 3/4" Rim, 12/24 VDC, 12 to 24VAC, Fail Secure Satin Stainless Steel

Item #: 0162 32D by RCI

Brand: RCI

See reviewsSee reviews
See reviews summary
In Stock

$533.05

/each
SAVE UP TO 53.30
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 164 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features

Use With

Rim Exit Devices

Color

Satin Stainless Steel

Color Code

630/US32D

Function

Electrically Unlocked (Fail Secure)

Package Volume

0

Amp Draw

.33 Amps at 12VAC, .50 Amps at 12VDC, .64 Amps at 24VAC, .24 Amps at 24VDC

Faceplate Depth

3/4 In.

Faceplate Size

9 In. X 1-3/4 In.

Frame Application

Metal or Wood

Operating Voltage

12VACDC/24VACDC

Package Qty

1

Base Material

Stainless Steel

Switch Type

None

Voltage

12/24 VAC/DC

Latch Throw

1/2" to 3/4"

UL Listing Type

UL 294 Listed for Access Control Unit Accessory (6th Edition), UL 1034 Burglary-Resistant Listed, UL 10C, 3-Hour Fire-Rating Listed, CAN/ULC S104, 3-Hour Fire-Rating Listed, California State Fire Marshal Listed (CSFM: 3776-2275:0501)

ADA Compliant

No

Static Strength

1500

Features

Latch Monitor; Heavy-Duty Housing; One-Piece Conventional Keeper Promotes Even Load Distribution for Increased Security; Lockdown Holes for Secure Mount; Non Handed; Hex Socket Head Cap Screws; Endurance: 500000 Cycles

Lock Type

Exit Device

Product Dimension

1-3/4" x 9" x 3/4"

Fail Safe / Fail Secure

Fail-Secure

Optional Monitor Switch

None

Product Overview

Electric Strike, 3/4 In. Surface for Rim Devices, 12/24VDC, 12 to 24VAC, Fail Secure, Satin Stainless Steel

Semi-mortise rim strike designed for use with Pullman latch rim exit devices . Accommodates 1/2" to 3/4" (13mm-19mm) latch projection. Certified to ANSI/BHMA standard A156 .31, Grade 1, endurance 500,000 cycles. CAN/ULC S104 & UL 10C, 3-hour fire-rating Listed (optional)

Public Buildings; Controlled Access; Fire Rated Openings; Industrial Environments

For use in: Public Buildings; Controlled Access; Fire Rated Openings; Industrial Environments
