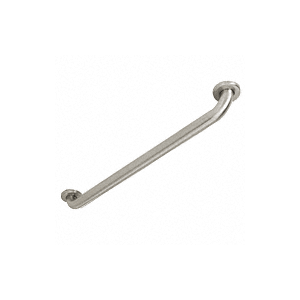

CRL GA3SF24 1-1/2" Diameter Brushed Stainless Steel Grab Bars - 24" Length
Item #: GA3SF24 by CR Laurence
See reviews See
reviews
The item is currently out of stock and it may or may not be restocked
OUT OF STOCK
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Exceeds A.D.A., VA, FHA, and Other Federal, State, and Local Building Codes
- Mounting Points: 2
- T304 18 Gauge Stainless Steel
Length
24" (610 mm)
CRL 1-1/2" Diameter Stainless Steel Grab Bars have a #4 satin finish. When installed properly, these Grab Bars can support loads in excess of 1300 lbs. (589 kg). Wall clearance is 1-1/2" (38 mm) from the wall to inside edge of tubing. This exceeds A.D.A., VA, FHA, and other federal, state, and local building codes.
A.D.A. Recommended Guidelines: It is recommended that a 36" (914 mm) minimum horizontal grab bar be installed on the back wall over the toilet and a 42" (1.07 m) minimum horizontal grab bar be installed on the sidewall or partition nearest the toilet. This can also be accomplished with a single horizontal two-wall grab bar (available on special order). Grab bars should not rotate in their fittings. The required mounting height is universally 33" to 36" (838 to 914 mm) from the centerline of the grab bar to the finished floor. The structural strength of all grab bars and their mounting devices should withstand more than 250 lbs. of force (1112N).
A.D.A. Recommended Guidelines: It is recommended that a 36" (914 mm) minimum horizontal grab bar be installed on the back wall over the toilet and a 42" (1.07 m) minimum horizontal grab bar be installed on the sidewall or partition nearest the toilet. This can also be accomplished with a single horizontal two-wall grab bar (available on special order). Grab bars should not rotate in their fittings. The required mounting height is universally 33" to 36" (838 to 914 mm) from the centerline of the grab bar to the finished floor. The structural strength of all grab bars and their mounting devices should withstand more than 250 lbs. of force (1112N).
