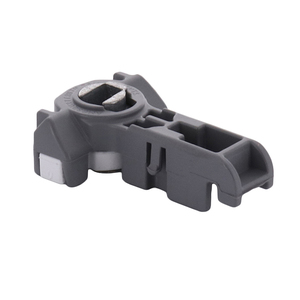

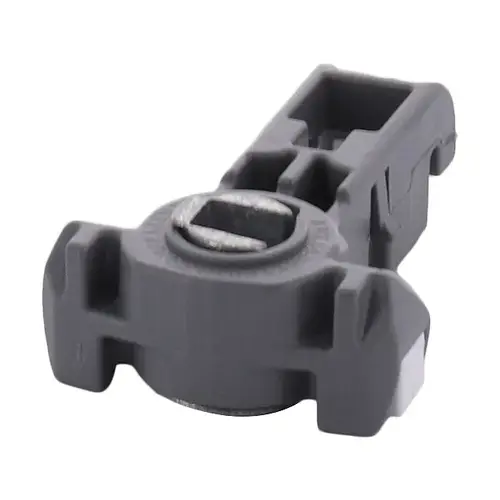

CRL FS266 1-1/4" Pivot Lock Shoe, Channel Balance Hardware, 1" Width, 17/32" Height, Gray Finish, For 716 Series Inverted Channel Balance Systems
Item #: FS266 by CR Laurence
Brand: CRL
1212 reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Constructed with a gray finish and green plastic pucks, this lock shoe is designed for use in window hardware systems.
- Measures 1-1/4" in width and 17/32" in height, providing a precise fit for specific channel balance hardware setups.
- Designed for use with 716 Series Inverted Channel Balance systems, commonly found in tilt-in style window applications.
- Features a closed cam design where the cam hole does not go completely through the shoe, ensuring proper mechanical function.
- Serves as a replacement part for channel balance hardware in residential or commercial window maintenance and repair projects.
- Fits tilt-in style window mechanisms to assist in the proper balance, movement, and operation of the window sash.
- Includes the lock shoe component for installation in window channel balance assemblies, facilitating window functionality.
Length
1-7/8"
Width
1-1/4"
Height
1/2"
Product Overview
The 1-1/4" Pivot Lock Shoe is a component for window hardware, specifically designed for use with 716 Series Inverted Channel Balance systems in tilt-in style windows. This lock shoe features a 1-1/4" width and a 17/32" height. It is constructed with green plastic pucks and includes a closed cam design where the cam hole does not extend completely through the unit. This part is intended for use in channel balance hardware applications to facilitate the operation of tilt-in windows. The lock shoe comes in a gray finish. This component is essential for maintaining the balance and movement of window sashes in residential or commercial window assemblies. The design ensures compatibility with specific inverted channel balance configurations, providing a functional fit for window repair and maintenance tasks. The lock shoe is a standard replacement part for window systems requiring this specific cam and puck configuration.
