This CRL Narrow Stile Aluminum Door Deadlock provides maximum security in a narrow backset lock. Available in either a 31/32" (25 mm) or 1-1/8" (29 mm) backset, the lock provides a 13/16" (20.6 mm) throw Hook latch bolt made of 5-ply laminated steel. The lock accepts a standard 1-5/32" (29 mm) mortise key or thumbturn cylinders with AR MS-type cam. An optional faceplate in satin aluminum or bronze anodized finish is available to finish the job.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

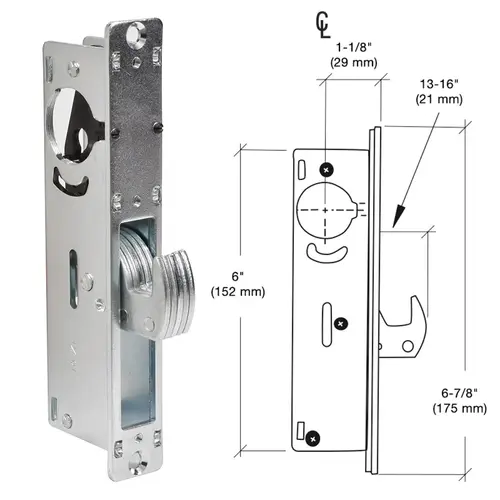

CRL DL2130B 1-1/8" Backset Narrow Stile Hook Throw Deadlock Aluminum
Item #: DL2130B by CR Laurence
See reviewsSee reviews
In Stock
$17.10
/eachSAVE UP TO 1.71
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 2539 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- 13/16" (21 mm) Throw
- Cylinder Backsets: 31/32" or 1-1/8" (25 or 29 mm)
- Faceplate (Optional)
- Lock Accepts Standard 1-5/32" (29 mm) Diameter Mortise Key or Thumbturn Cylinders with AR MS-Type Cam
- Throw Bolt Made of 5-Ply Laminated Steel with Center 3-Ply Hardened Case Plus Hardened Roller Pin to Resist Hacksaw
Shipping Weight
1 lb (454g)
Backset
1-1/8" (28.6 mm)
Handed
Non-Handed
Finish
Aluminum
Material
Steel
Handing
Non Handed
Finish/Color
Aluminum
Cylinder Backset (Inches)
1-1/8
Throw Latch (Inches)
13/16
Cylinder Backset
1-1/8
Throw Latch
13/16
Product Overview
This CRL Narrow Stile Aluminum Door Deadlock provides maximum security in a narrow backset lock. Available in either a 31/32" (25 mm) or 1-1/8" (29 mm) backset, the lock provides a 13/16" (20.6 mm) throw Hook latch bolt made of 5-ply laminated steel. The lock accepts a standard 1-5/32" (29 mm) mortise key or thumbturn cylinders with AR MS-type cam. An optional faceplate in satin aluminum or bronze anodized finish is available to finish the job.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
