CRL  1-1/8" Backset Narrow Stile Left Hand Deadlatch Lock
Qty
+
$9.73   /each

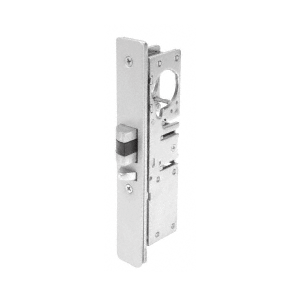

CRL DL2140BLH 1-1/8" Backset Narrow Stile Left Hand Deadlatch Lock

  • Faceplate and Strike (Optional)
  • 1/2" (13 mm) Throw
  • Cylinder Backsets: 31/32" or 1-1/8" (25 or 29 mm)
  • Field Reversible for Opposite Hand
  • Key Controlled Dogging
  • Lock Accepts Standard 1-5/32" (29 mm) Diameter Mortise Key or Thumbturn Cylinders with AR MS-Type Cam
See Full Product Description

Additional options:

SALE

$9.73 /each

Qty

In Stock
Quick Shipping

Usually ships in 1 business day*

Additional options:

SALE
+
In Stock Quick Shipping

Usually ships in 1 business day*

Have a Question?

Chat with our Expert


Description

  • Faceplate and Strike (Optional)
  • 1/2" (13 mm) Throw
  • Cylinder Backsets: 31/32" or 1-1/8" (25 or 29 mm)
  • Field Reversible for Opposite Hand
  • Key Controlled Dogging
  • Lock Accepts Standard 1-5/32" (29 mm) Diameter Mortise Key or Thumbturn Cylinders with AR MS-Type Cam

  • Product Description
  • Technical Details 7
  • Product Reviews 1
  • Product Q&A 1
  • Large Order Quote
  • Shipping / Return Policy

Product Description

Minimum Order

1 Each

Handed

Left

Backset

1-1/8" (29 mm)

  • Faceplate and Strike (Optional)
  • 1/2" (13 mm) Throw
  • Cylinder Backsets: 31/32" or 1-1/8" (25 or 29 mm)
  • Field Reversible for Opposite Hand
  • Key Controlled Dogging
  • Lock Accepts Standard 1-5/32" (29 mm) Diameter Mortise Key or Thumbturn Cylinders with AR MS-Type Cam

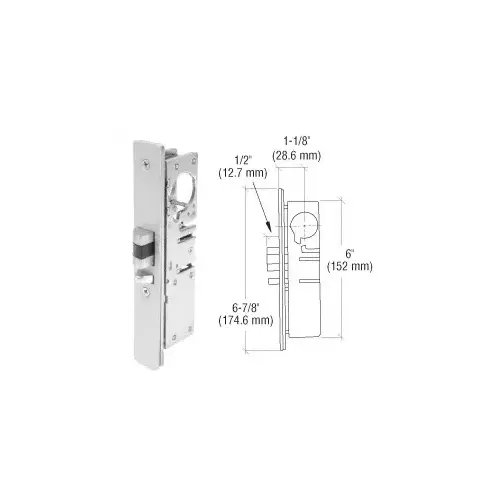

This CRL Narrow Stile Aluminum Door Deadlock provides maximum security in a narrow backset lock. Available in either a 31/32" (25 mm) or 1-1/8" (29 mm) backset, the lock provides a 1/2" (13 mm) throw dead latch made of hardened steel. The lock accepts a standard 1-5/32" (29 mm) mortise key or thumbturn cylinders with AR MS-type cam. Faceplates and Strikes are sold separately. For Strikes use Cat. Nos. DL4515, Dl4540, or DL4545.
