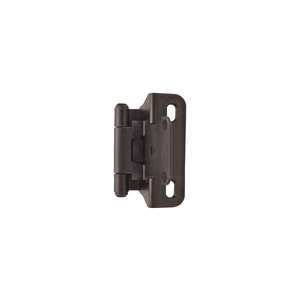

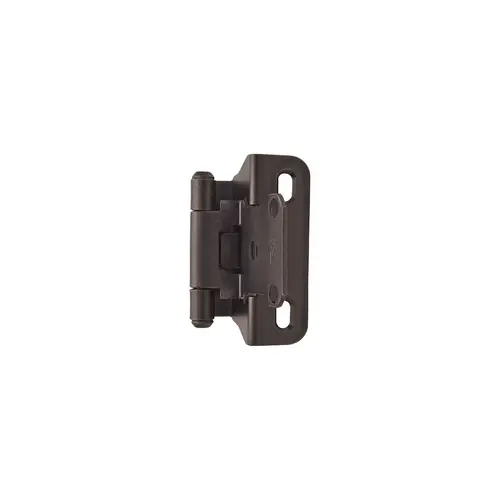

Functional Hardware Self Closing Partial Wrap Cabinet Hinge 1/4 Inch Overlay Oil Rubbed Bronze - Pair

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Amerock BPR7566ORB Functional Hardware Self Closing Partial Wrap Cabinet Hinge 1/4 Inch Overlay Oil Rubbed Bronze - Pair

Item #: BPR7566ORB by Amerock

UPC #: 026634236066

See reviewsSee reviews
See reviews summary
In Stock

$9.45

/each
SAVE UP TO 0.94
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 3811 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • 1/4 in (6 mm) Overlay Hinge
  • Overlay Hinge
  • Finished in Oil-Rubbed Bronze
  • 2 Pack
  • Includes mounting hardware: (Size(s):#6 Flat Head Screw x 5/8in; #5 Flat Head Screw x 1/2in)
  • Uncompromised quality at an unbeatable price
  • Amerock Offers High Quality Functional Hardware That Blends In Seamlessly With Any Style
  • Made To Last With Solid Materials
  • Includes All Mounting Hardware for Easy Installation

Finish

Oil Rubbed Bronze

Top/Bottom Widths

NO

Style

N/A

Product Weight

0.251

Collection

Functional Hardware

Overlay

6

Product Length

2-1/4 Inch

Product Width

1-1/2 Inch

Individual Pack

Polybag

Overlay Decimal (in)

0.25

Overlay Fraction (in)

1/4

Packaging Height (in)

0.54

Packaging Length (in)

6.563

Packaging Width (in)

3.625

Pieces Per Package

2

Product Length Decimal (in)

2.25

Product Projection (mm)

33.3375

Product Projection Decimal (in)

1.3125

Product Projection Fraction (in)

1 5/16

Product Width Decimal (in)

1.5

Shelf Pack Height (in)

6.75

Shelf Pack Length (in)

13.125

Shelf Pack Qty

25

Shelf Pack Weight (lbs)

6.275

Shelf Pack Width (in)

3.625

Wrap Type

Self-Closing, Partial Wrap

Base Material

Steel

Product Type

Cabinet Hinge

Design

Functional Hardware

Series

Functional Hardware

Material

Steel

Length

2-1/4

Width

1-1/2

Type

1/4 Inch Overlay

Pack Size

2

Projection

1-5/16 in(18mm)

Function

Cabinet Hinge

Finish Description

Oil Rubbed Dark Bronze

Finish Family

Dark Bronze

Included Components

(4) #6 F.H. x 5/8" LGTH; (6) #5 F.H. x 1/2" LGTH

Product Material

Steel

Hole Center to Center

1-1/2 Inch

Standards

KCMA; BHMS

Function Family

Hinge/Pivot

Product Projection

1-5/16 Inch

Features

1-1/4" Overlay

Mounting Type

Face Mount

Color Code

ORB

Manufacturer Parent

Amerock

Sub-Series

BPR7566-ORB

Size

1/4" Overlay

Product Length (in.)

2-1/4

Product Width (in.)

1-1/2

Includes Hardware

#6 Flat Head Screw X 5/8In & #5 Flat Head Screw X 1/2In

Master Pack Weight

25.1

Master Pack Height

7.5

Master Pack Length

15.75

Master Pack Width

13.75

Product Width (mm)

38

Product Length (mm)

57

Master Pack Qty

100

Master Pack I2of5 (in)

20026634236268

Cabinet Type

Face-frame

Material Type

Steel

Width (in)

1-1/2 in

Length (in)

2-1/4 in

Color/Finish

oil rubbed bronze

Mount Type

Screw-On

Overlay (In.)

1/4 in

Projection (In.)

5/8 in

Manufacturer Warranty

Limited Lifetime Warranty

Collection Name

Cabinet Hinge

Hazardous Material

No

Finish code

ORB

No of inners

1

Product Overview
BPR7566Self-Closing, Partial Wrap

Every Amerock functional hardware series item is tested for durability in conditions exceeding all KCMA certification requirements and BHMS standards for cycle life, strength and finish quality.

Features:
  • Amerock, LLC ("Amerock") offers a Limited Warranty on this product.
Specifications: Product Detail:
  • 1/4" (6 mm) Overlay
Length:
  • 2 1/4" (57mm)
Width:
  • 1 1/2" (38mm)
Projection:
  • 5/8" (16mm)
Hinge Type:
  • Self-Closing, Partial Wrap
Material:
  • Steel
Hardware Included:
  • (4) #6 F.H. x 5/8" LGTH
  • (6) #5 F.H. x 1/2" LGTH
Finishes:
  • ORB - Oil Rubbed Bronze
