- Allows Easy Control of Sealant Application Thickness
- Compatible with All Cold-Applied Sealants
- Won't Adhere to Sealants; No Bond Breaker Needed
Diameter of Rod
1 in (25.4 mm)
Feet per Bulk Case
550 ft (168 m)
550' (168 m)
1" (25 mm)
550' (168 m)
Roll Length (Feet)

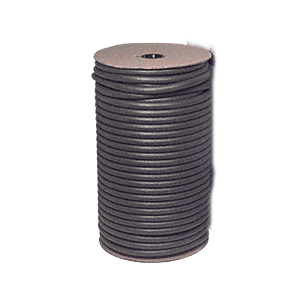

CRL Closed Cell Backer Rod is a round, flexible, closed cell polyethylene foam with an exterior "skin" used as a backing and thickness control device for elastomeric and other cold-applied sealants. The Backer Rod becomes an integral part of the joint into which it is installed, and therefore is available in a range of diameters to accommodate joints from 3/16" to 1-5/8" (5 to 41 mm). It limits the depth of the sealant, thereby preventing excessive use of the sealant, which promotes proper joint design. Because the sealant will not bond to the "skin" of the rod, it can stretch and recover with joint movement, with minimal stress being put on the points of adhesion to the substrate.
CRL Closed Cell Backer Rod will not absorb water or wick water to joint walls, which could cause adhesive failure. It is compatible with cold-applied sealants, and its round shape promotes the preferred "hourglass" shape for joint sealants. It withstands hot and cold temperature extremes from -45° to 160°F (-43° to 71°C).
CRL Closed Cell Backer Rod is chemically inert, and resistant to oils, gasoline, and solvents. It will not stain or "bleed" into sealant material. Backer Rod is typically used in expansion/control joints where cold-applied sealants are used. These joints would normally be found in curtain walls, construction partitions, precast panels, parking decks, door and window frame perimeters, coping, floor and deck joints, horizontal traffic joints, and building rehabilitation projects.
Proper size selection of CRL Closed Cell Backer Rod is important as it controls the depth of the sealant bead. It must be approximately 25% wider than the joint to fit tightly, and function as a bond breaker to prevent bottom side adhesion of the sealant. Always install using a blunt tool or roller. Cat. No. SBRR Backer Rod Roller is designed specifically for the smooth installation of all types of backer rods.
NOTE: Do not tear, puncture, crease, over compress or stretch during insertion. Always use the correct size Backer Rod for the particular application. Refer to the size selection chart. Do not use with hot-applied sealants or hot melt adhesives where their surface temperature is over 160ºF (71ºC).
