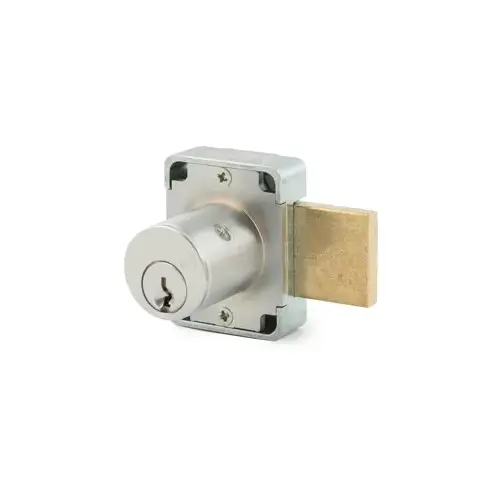

OLYMPUS LOCK 100DR 26D 7/8 KA101 Pin Tumbler Drawer Lock, Square Back, 7/8" Material, N Series, National Keyway, Satin Chrome, KA101
Item #: 100DR 26D 7/8 KA101 by Olympus Corporation
Brand: OLYMPUS LOCK
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
Finish
Satin Chrome
Application
Cabinet Doors
Handing
Non-Handed
Function
Drawer Lock
Bolt Throw
3/4"
Cylinder Type
Pin Tumbler
Finish Description
Satin Chrome
Product Height
1-5/8 Inch
Product Width
1-1/4 Inch
Included Components
(2) Keys; 56-1 Bar Strike; Lock Mounting Screws
Mounting Hole Diameter
0.1500"
Keying Type
Keyed Alike
Product Material
Body: Zinc Die Cast; Cylinder: Solid Brass
Bolt Type
Dead Bolt
Rekeyable
Yes
Standards
ANSI/BHMA A156.11 Grade 1
Key Retaining
No
Mounting Plate Thickness
1/2 Inch
Features
Easily Rekeyable via Set Screw Cylinder Release Mechanism
Product Type
Cabinet Hardware
Series
Cabinet Lock
Hand
Non-Handed
Color Code
626/US26D
Finish Family
Satin Chrome
Function Family
Cabinet/Drawer Hardware
Key Code
101
Manufacturer Parent
Olympus Lock
Sub-Series
100DR-26D-78-KA101
Lock Style
Deadbolt Cabinet Lock
Alternate Part Number-1
126636
Height
2.25
Length
4.5
Width
2.88
Product Overview
The Olympus Lock 100DR 26D 7/8 KA101 is an N Series pin tumbler deadbolt drawer lock featuring a square back design. It is configured for a maximum material thickness of 7/8 inch and utilizes a National Keyway (D4291 key blank). This lock is keyed alike to key number 101 (KA101). The lock body is constructed from zinc die-cast, and it incorporates a solid brass pin tumbler cylinder, typically with 4 or 5 pins. The US26D satin chrome finish provides a low-gloss, brushed appearance over a plated base metal. It is non-handed, allowing the key to be removed in both locked and unlocked positions. The lock includes two keys, a bar strike, and mounting screws. This model meets ANSI/BHMA Grade 1 requirements (E07121) for high security in cabinet and drawer applications.
