Features
- The combination of the pressure-sensitive, rubber resin adhesive and the PVC backing offers excellent electrical and mechanical protection
- Flame-retardant and highly resistant to UV rays, abrasion, moisture, alkalies, solvents and many acids
- Made of durable PVC
- Withstands a temperature range of -14 to 221 deg F
Application
For phase identification, color-coding of motor leads and piping systems and for marking safety areas
Tensile Strength
17 lb/in
Adhesion Strength
1.25 lb/in
Width (in)
1/2
Part no.
10232
MFR Model
10232
Standard/Approvals
CSA Certified | RoHS 2011/65/EU Compliant | UL Listed | VDE Certified
Backing Material
PVC
Color/Finish
White
Series
35
Material
PVC
Elongation at Break
225 %
Thickness
7 mil
Length
240"
Overall Width
0.5"
Pull Length
1/2"
Color
White
Dielectric Strength
7875 V
Trade Name
Scotch
Adhesive Presence
Single-Sided
Electrical or Thermal
Electrically Insulating
Maximum Operating Temperature
+221 °F
Minimum Operating Temperature
+32 °F
Width
1/2"
Alternative UPC
80610833974
Alternate Part Number-1
35-1/2X20FT-WH
Quantity
100 per case
Resistance
Abrasion; Weather; Alkalies; Acid; Corrosion
UNSPSC
31201502
Thickness [Nom]
7 mil
Tensile Strength (2) [Nom]
18 lb/in
Temp. Range [Nom]
176° F
Nom. Width
1/2 in
Nom. Length
20 ft
Length (ft.)
20.00
Thickness (mil)
7.0000
Applications
Color Coding
Length Range
6 to 11.9 Yd
Standards
CSA Certified
Length (Meters)
6.10
Maximum Operating Temperature F
220.00
Minimum Operating Temperature C
0.00
Minimum Operating Temperature F
32.00
Series Part Number
35
Vendor Drop Ship
N
Width (Inch)
1/2
Width (mm - 2 Decimals)
12.00
Tensile Strength (Lb./Inch)
17.00
Maximum Operating Temperature C
105.00
Dielectric Strength (V/mil)
1250.00

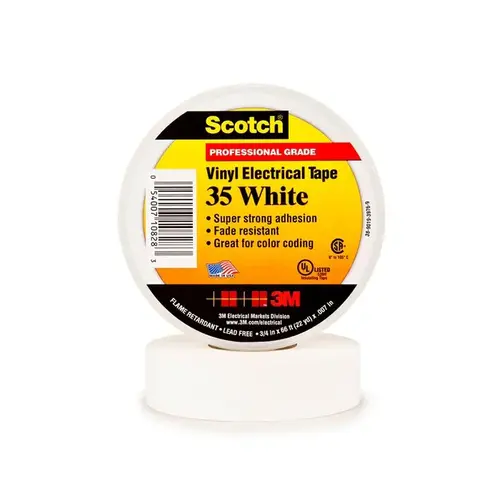

Product Overview
Designed for use in phase identification, color coding of motor leads and piping systems and for marking safety areas
Has excellent electrical insulating properties, wraps smoothly, conforms well and holds over a wide range of temperatures
Pressure-sensitive rubber based adhesive
Inhibits corrosion of electrical conductors.
Has excellent electrical insulating properties, wraps smoothly, conforms well and holds over a wide range of temperatures
Pressure-sensitive rubber based adhesive
Inhibits corrosion of electrical conductors.
