CRL CRL8770S 105 degree Hold Open Adjustable Spring Power Overhead Concealed Door Closer S-Package
Item #: CRL8770S by CR Laurence
In Stock $183.47 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- For Doors with 1/2" (13 mm) Top Rail Depth
- Adjustable Dual-Purpose Bottom Pivot Set for Floor or Threshold Mounting
- Suitable for Doors from 36" to 42" to Meet A.D.A. Opening Force Requirements
- UL Listed
Spring Size
Adjustable
Type
Center Hung
Hold Open
Yes
Maximum Door Weight
200
UL Listed
Yes
Includes
CRL6770, CRL8010FS, CRL8010S, CRL8010DP
Closer Type
Overhead Concealed
Recommended Door Type
Aluminum, Hollow Metal
Top Rail Depth (Inches)
1/2
Similar
CRL8970GE
Americans with Disabilities Act (ADA) Compliant
Yes
Bottom Door Rail Depth (Inches)
1
Replacement Parts
CRL8010CPAL, CRL8010CPDU, HMC035, DCH4SAS, DCH4DUS, CRL8010SCP, SLB3, SLS1
Bottom Pivot Type
Dual Purpose Pivot
Spindle Length (Inches)
1/2
Body Length
11-5/8
Body Height
1-11/16
Body Width
3-11/16
Material
Aluminum
Handing
Double Acting
Degree Hold Open
105°
Spindle
1/2
Bottom Door Rail Depth
1
Top Rail Depth
1/2

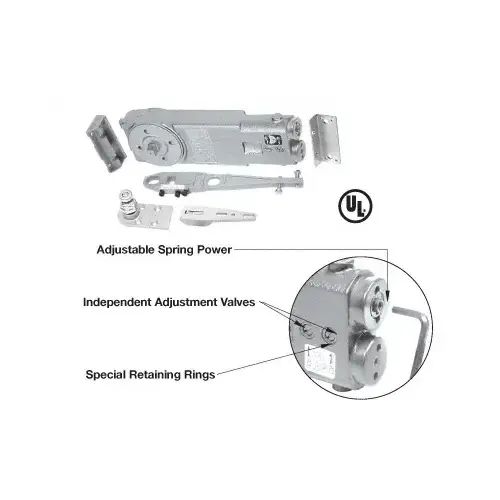

The CRL Adjustable Spring Power Overhead Concealed Door Closer is available to meet A.D.A. Opening Force requirements. Available as a body only with mounting clips to retrofit existing non-adjustable door closer installations, and as complete packages that includes the Door Closer, Mounting Clips, Type S-Side Load Arm or Type A-End Load Arm, and a DP-Adjustable Dual-Purpose Bottom Pivot Set or GE-Pivot Set. The Door Closer has independent, dual-action valves to control closing and latching speeds. Both 90º and 105º Hold Open and No Hold Open models are available. Door Closer Bodies fit into standard 1-3/4" x 4" (44 x 102 mm), or larger, extrusions. Door Closers with different spring sizes or hardware options are available.
Adjustable Spring Power
Allows adjustment of spring tension from a minimum of 8-1/2 lbs. opening force to a medium spring size to accommodate site conditions and requirements.
Independent Adjustment Valves
Non-Critical valve control adjusts both Closing Speed and Latching Speed independent of each other.
Special Retaining Rings
Prevent the Adjustment Valve Screws from being backed all the way out of the Door Closer Body.
NOTE: An auxiliary floor or overhead door stop is recommended to prevent possible damage to both the door closer and entry way due to over-extension of maximum allowable door swing.
Product Warning:
Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size.
.
