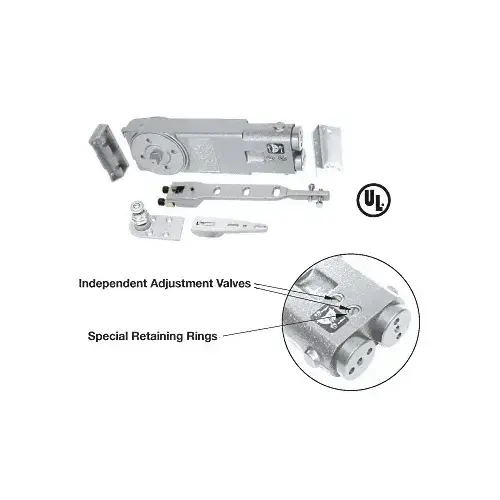

These CRL Overhead Door Closer Kits consist of a Medium Spring Size Door Closer, Mounting Clips, Type "A" End-Load Arm, and a "DP" Adjustable Dual-Purpose Bottom Pivot Set. The Door Closer has independent, dual-action valves to control closing and latching speeds. Both 90 and 105 degree Hold Open and No Hold Open models are available. Door Closer Bodies fit into standard 1-3/4" x 4" (44 x 102 mm), or larger, extrusions. Door Closers with different spring sizes or hardware options and Door Closer Bodies with Mounting Clips and Overhead Concealed Door Closer Accessories are available.
Independent Adjustment Valves
Non-Critical valve control adjusts both Closing Speed and Latching Speed independent of each other.
Special Retaining Rings
Prevent the Adjustment Valve Screws from being backed all the way out of the Door Closer Body.
NOTE: An auxiliary floor or overhead door stop is recommended to prevent possible damage to both the door closer and entry way due to over-extension of maximum allowable door swing.
NOTE: Although A.D.A. Series Door Closers comply with A.D.A. specified opening forces, they might not provide adequate spring power to control and close the door due to varying site conditions and door size.
Product Warning:
Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size. This Closer is not to be used for doors weighing in excess of 200 Lbs. (91 Kg) or wider than 36" (914 mm).
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers
CRL CRL8970A 105 degree Hold Open Overhead Concealed Closer Package for End-Load Installation A.D.A. "A" Package
Item #: CRL8970A by CR Laurence
Brand: CRL
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- "A" Center-Hung End-Load Hardware Package for Doors with 1" Deep Top Rails
- For Doors with 1" (25 mm) Top Rail Depth
- Adjustable Dual-Purpose Bottom Pivot Set for Floor or Threshold Mounting
- U.L. Listed with a Five Year Limited Warranty
Type
Center Hung
Spring Size
8.5
Hold Open
Yes
Maximum Door Weight
200
UL Listed
Yes
Includes
CRL6970, CRL8010FS, CRL8010A, CRL8010DP
Arm Type
End Load
Closer Type
Overhead Concealed
Recommended Door Type
Aluminum, Hollow Metal
Similar
CRL8770A
Americans with Disabilities Act (ADA) Compliant
Yes
Replacement Parts
CRL8010CPAL, CRL8010CPDU, HMC035, DCH4SAS, DCH4DUS, ELB2, ELS1
Bottom Pivot Type
Dual Purpose Pivot
Spindle Length
1/2"
Body Length
11-5/8
Body Height
1-11/16
Body Width
3-11/16
Material
Aluminum
Handing
Double Acting
Degree Hold Open
105°
Spindle
1/2
Product Overview
These CRL Overhead Door Closer Kits consist of a Medium Spring Size Door Closer, Mounting Clips, Type "A" End-Load Arm, and a "DP" Adjustable Dual-Purpose Bottom Pivot Set. The Door Closer has independent, dual-action valves to control closing and latching speeds. Both 90 and 105 degree Hold Open and No Hold Open models are available. Door Closer Bodies fit into standard 1-3/4" x 4" (44 x 102 mm), or larger, extrusions. Door Closers with different spring sizes or hardware options and Door Closer Bodies with Mounting Clips and Overhead Concealed Door Closer Accessories are available.
Independent Adjustment Valves
Non-Critical valve control adjusts both Closing Speed and Latching Speed independent of each other.
Special Retaining Rings
Prevent the Adjustment Valve Screws from being backed all the way out of the Door Closer Body.
NOTE: An auxiliary floor or overhead door stop is recommended to prevent possible damage to both the door closer and entry way due to over-extension of maximum allowable door swing.
NOTE: Although A.D.A. Series Door Closers comply with A.D.A. specified opening forces, they might not provide adequate spring power to control and close the door due to varying site conditions and door size.
Product Warning:
Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size. This Closer is not to be used for doors weighing in excess of 200 Lbs. (91 Kg) or wider than 36" (914 mm).
