35 Series Premium Grade Color Coding Electrical Tape, 66 ft x 3/4 in, 7 mil THK, Brown

Roll over image to zoom in

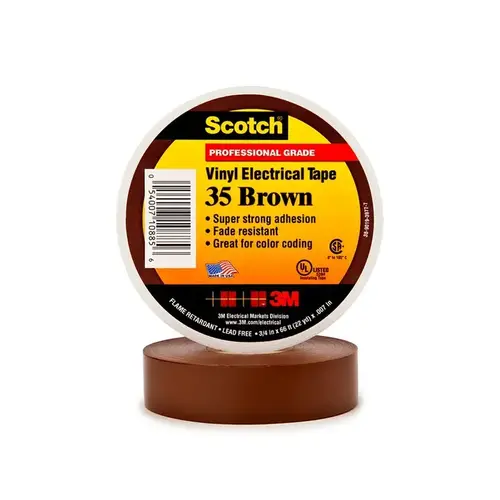

SCOTCH 10885 35 Series Premium Grade Color Coding Electrical Tape, 66 ft x 3/4 in, 7 mil THK, Brown

Item #: 10885 by 3M

UPC #: 054007108856

See reviewsSee reviews

$11.02

/roll
SAVE UP TO 1.10

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Features
  • The combination of the pressure-sensitive, rubber resin adhesive and the PVC backing offers excellent electrical and mechanical protection
  • Flame-retardant and highly resistant to UV rays, abrasion, moisture, alkalies, solvents and many acids
  • Made of durable PVC
  • Withstands a temperature range of -14 to 221 deg F

Application

For phase identification, color-coding of motor leads and piping systems and for marking safety areas

Tensile Strength

17 lb/in

Adhesion Strength

1.25 lb/in

Width (in)

3/4

Part no.

10885

MFR Model

10885

Standard/Approvals

CSA Certified | RoHS 2011/65/EU Compliant | UL Listed | VDE Certified

Backing Material

PVC

Color/Finish

Brown

Series

35

Material

PVC

Elongation at Break

225 %

Thickness

7 mil

Length

792"

Overall Width

0.75"

Pull Length

3/4"

Color

Brown

Dielectric Strength

7875 V

Trade Name

Scotch

Adhesive Presence

Single-Sided

Electrical or Thermal

Electrically Insulating

Maximum Operating Temperature

+221 °F

Minimum Operating Temperature

+32 °F

Width

3/4"

Alternative UPC

80610833941

Alternate Part Number-1

35-3/4X66FT-BR

Product Overview
Scotch® vinyl color-coding electrical tape 35 is a 7 mil thickness, premium-grade, color-coded electrical tape. This flame-retardant tape is suitable for use in phase identification, color-coding of motor leads and piping systems and for marking safety areas. This tape is 600 V-rated and withstands a temperature range of 14 to 221 deg F. Scotch® tape 35 provides electrical and mechanical protection with the combination of an aggressive, pressure sensitive, rubber resin adhesive and an elastic PVC backing. This tape is flame-retardant and is highly resistant to UV rays, abrasion, moisture, alkalies, acids, solvents and varying weather conditions. It stretches easily and adheres virtually in any shape. Ideal for insulating electrical wires and is compatible with synthetic cable insulations, jackets and splicing compounds. UL listed, VDE, CSA certified and RoHS 2011/65/EU compliant.
3M Scotch 35 brown insulating tape comes in a 3/4 in width, 66 ft length, uses a rubber adhesive and is packaged 100 rolls per case. Can be used in the following temperature range: +32 F to +221 F. One of the unique features of this insulating tape is the elongation capabilities. The 3M Scotch 35 insulating tape can be stretched 225 % for breaking. Provides a tensile strength of 17 lb/in. Many tape products can have either conductive or insulating properties which are used across a variety of applications. This insulating tape is electrically insulating. This product is a single-sided adhesive insulating tape. When purchasing this product, consider the thickness. The variances in thickness often make an important difference in proper performance. This insulating tape has a 7 mil thickness. In addition to the other properties this product is flame retardant. This insulating tape meets the following standards: CSA 2.22, UL 510, VDE 0340 TEIL-3-1, CID A-A-55809B.
Specifications:

3M Number: 35

Flame Retardant: Flame Retardant

Shelf Life: 5 year

Standards Met:

  • CSA 2.22
  • UL 510
  • VDE 0340 TEIL-3-1
  • CID A-A-55809B

Specification parameters description:

Standards Met:
ASTM - ASTM International, formerly known as American Society for Testing and Materials CAN/ULC - Underwriters Laboratories of Canada IBC - International Building Code IFC - Industry Foundation Classes IFGC - International Fuel Gas Code IMC - International Mechanical Code IPC - Association Connecting Electronics Industries, formerly known as Institute for Interconnecting and Packaging Electronic Circuits IRC - International Residential Code NBCC - National Building Code of Canada NCB - National Certification Body NEC - National Electrical Code NFPA - National Fire Protection Association UL - Underwriters Laboratories
