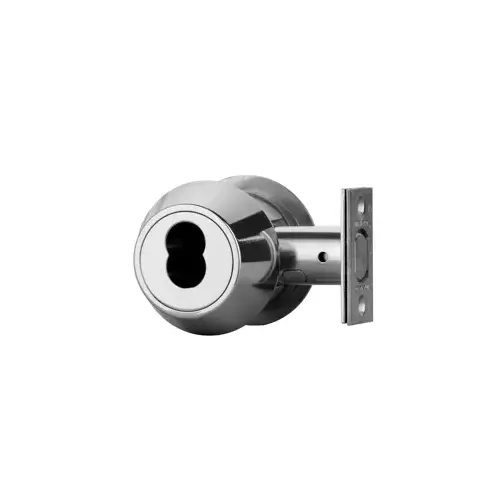

Medeco Security Locks 11-C402-26 LFIC Single Cylinder Maxum Deadbolt, Steel Material, 2-3/4" Backset, Round Rose Trim, 1-1/8" Faceplate, Satin Chrome Finish
Item #: 11-C402-26 by Medeco
Brand: Medeco Security Locks
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Constructed with a steel deadbolt and brass cylinder, finished in satin chrome for a consistent look in residential and commercial door hardware.
- Features a 2-3/4" backset and a 1-1/8" front size, compatible with door thicknesses ranging from 1-3/8" to 2-1/2" for versatile installation.
- Designed for non-handed installation, suitable for various door orientations in both residential and commercial security applications.
- Includes a square corner strike measuring 1-1/8" x 2-3/4" and a round rose trim, providing a clean and professional finish for door setups.
- Meets ansi/bhma grade 1 standards and is ul 437 listed, ensuring the deadbolt meets established performance and safety requirements.
- Utilizes a sidebar mechanism, mushroom top pins, and a rotating pin tumbler design for internal operation and key control functionality.
- Operates as a single cylinder deadbolt with an inside thumbturn, providing manual locking control for standard door security needs.
Color
Satin Chrome
Color Code
626/US26D
Package Qty
1
Finish
Satin Chrome
Grade
ANSI/BHMA Grade 1
Backset
2-3/4 Inch
Function
0-Cylinder x Thumbturn Deadbolt
Strike
Deadbolt, 1-1/8 Inch x 2-3/4 Inch, Square Corner
Cylinder Type
LFIC Less Core
Finish Description
Satin Chrome
Rose/Escutcheon Trim
Round Rose
Product Type
Auxiliary Lock
Series
11C402 Series
ADA Approved
False
Warranty
2 Year
Strike Type
Square Corner
ADA Compliant
No
Finish Family
Satin Chrome
Strike Size
1-1/8" x 2-3/4"
Cylinder Material
Brass
Standards
ANSI/BHMA A156.36; UL 437 Listed
Cylinder Type Used
LFIC Less Core
Front Size
1-1/8 Inch
Function Family
Cylinder With Turn Deadbolt
Deadbolt Material
Steel
Features
Utility Patented Key Control; Special Elevating and Rotating Pin Tumbler Design; Mushroom Top Pins and a Sidebar Mechanism
Manufacturer Parent
Assa Abloy
Sub-Series
CL_Deadbolt_Locks_medeco_1
Handing
Non-Handed
Cylinder Included
Yes
Alternate Part Number-1
115133
Restricted Keyway
No
Latch Bolt Type
Deadbolt
Door Bore Size
2-1/8"
Lock Category
Deadbolts
Door Thickness Min
1-3/8"
Latch Bolt Face Type
Square Corner
Door Thickness Max
2-1/2"
Knob/Lever Style
Inside Thumbturn
Height
2.76
Length
7.09
Width
4.33
Product Overview
The LFIC single cylinder maxum deadbolt less core is an auxiliary lock designed for residential and commercial door security. this deadbolt is constructed with a steel deadbolt and a brass cylinder, providing a functional locking mechanism for standard doors. it features a 2-3/4" backset and a 1-1/8" front size, suitable for doors with a thickness ranging from 1-3/8" to 2-1/2". the lock is designed with a round rose trim and an inside thumbturn for manual operation. it includes a square corner strike measuring 1-1/8" x 2-3/4". the unit is non-handed, allowing for installation on various door configurations. it meets ansi/bhma grade 1 standards and is ul 437 listed. the internal mechanism incorporates a sidebar, mushroom top pins, and a rotating pin tumbler design. this deadbolt is finished in satin chrome, offering a neutral aesthetic for door hardware.
