The CRL AMZ1 Production Diamond Drilling Machine drills 1/8" to 4" (3 to 102 mm) holes faster and more precisely than any other portable glass drilling machine. In comparison to other machines on the market, drilling a 2" (51 mm) hole in 1/4" (6 mm) mirror can be done in less than ten seconds while using a properly dressed drill bit (tests done under controlled conditions).
The CRL AMZ1 ships ready for use with 110V AC power and includes a grounded plug for use with a Ground Fault Circuit Interrupt device, such as our Cat. No. GF1. It is also loaded with popular features, and durable enough to give you years of dependable service. Make the move up from steel and brass tube drills, and their messy silicon carbide slurry, to our technically advanced Belgian Mount Multi-Layer Metal Bond Drills. Most commonly used with the AMZ1 are the Belgian Mount PDT Series (Metal Bond) and HBT Series (Electro-Formed) Diamond Drills.
When purchasing the AMZ1 Drill Machine you should also purchase a Sharpening Stone to dress your Metal Bond Diamond Drills. The stone should be wider than the diameter of the drill being sharpened.
NOTE: The AMZ1 Drill needs to be received at our Los Angeles Headquarters (at the customer’s expense) before any replacement parts will be distributed. CRL Manufacturing will evaluate the drill at no charge to the customer. This is necessary to assure the proper replacement part(s) are selected due to advanced modifications to the machine over the years. After evaluation the correct part(s) will be identified and the part(s) and drill can be returned via the local service center for assembly by the customer. A price quote is also available for assembly by CRL Manufacturing.
AMZ1 Features:
Advanced Electronic Circuitry
A Powerful DC Motor with an Electronic Variable Speed Control that Provides Full Torque at all Speeds Ranging from 0 to 2900 RPM
Twin Vertical Guide Posts for Precise Drilling
A Dual Locking Vacuum Cup Base Keeps the Machine Steady While Drilling
Standard Accessories:
12' (3.6 m) Heavy-Duty Power Cord
Coolant Retaining Ring
Coolant Chuck with Supply Hose
Externally Serviceable Motor, Brushes, and Fuse
Built-In Handle for Easy Carrying
Service Wrenches
Complete Operation Manual
Product Warning:
Always use a Ground Fault Circuit Interrupt, such as Cat. No. GF1, when operating wet glass working machinery to avoid electric shock.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

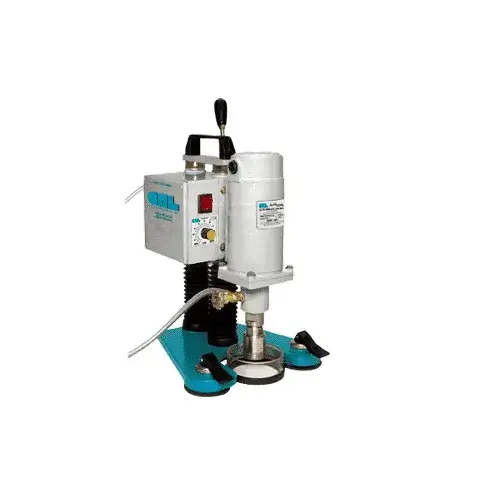

CRL ALUM-AMZ1-VCP-1 110V AC Production Diamond Glass Drilling Machine
Item #: ALUM-AMZ1-VCP-1 by CR Laurence
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Variable Speed, High Torque DC Motor
- Drills Holes Faster and More Precisely Than Any Other Portable Glass Drilling Machine
- Built-In Water Coolant Chuck
- Accepts Belgian Thread Diamond Drills: 1/8" to 4" (3 to 102 mm) in Diameter
- Locking Vacuum Cup Base
Depth
10-1/2 in (266.7 mm)
Height
16 in (406.4 mm)
Width
11 in (279.4 mm)
Type
110V
Voltage
110V AC
Speed
VARIABLE
Drill Hole
1/8 To 4
Brand
CRL
Works On
Belgian Thread Diamond Drills
Product Overview
The CRL AMZ1 Production Diamond Drilling Machine drills 1/8" to 4" (3 to 102 mm) holes faster and more precisely than any other portable glass drilling machine. In comparison to other machines on the market, drilling a 2" (51 mm) hole in 1/4" (6 mm) mirror can be done in less than ten seconds while using a properly dressed drill bit (tests done under controlled conditions).
The CRL AMZ1 ships ready for use with 110V AC power and includes a grounded plug for use with a Ground Fault Circuit Interrupt device, such as our Cat. No. GF1. It is also loaded with popular features, and durable enough to give you years of dependable service. Make the move up from steel and brass tube drills, and their messy silicon carbide slurry, to our technically advanced Belgian Mount Multi-Layer Metal Bond Drills. Most commonly used with the AMZ1 are the Belgian Mount PDT Series (Metal Bond) and HBT Series (Electro-Formed) Diamond Drills.
When purchasing the AMZ1 Drill Machine you should also purchase a Sharpening Stone to dress your Metal Bond Diamond Drills. The stone should be wider than the diameter of the drill being sharpened.
NOTE: The AMZ1 Drill needs to be received at our Los Angeles Headquarters (at the customer’s expense) before any replacement parts will be distributed. CRL Manufacturing will evaluate the drill at no charge to the customer. This is necessary to assure the proper replacement part(s) are selected due to advanced modifications to the machine over the years. After evaluation the correct part(s) will be identified and the part(s) and drill can be returned via the local service center for assembly by the customer. A price quote is also available for assembly by CRL Manufacturing.
AMZ1 Features:
Standard Accessories:
Product Warning:
Always use a Ground Fault Circuit Interrupt, such as Cat. No. GF1, when operating wet glass working machinery to avoid electric shock.
.
