Features
Color
Satin Bronze Clear Coated
Color Code
612/US10
Hinge Type
Pivot, Offset Set
Fire Rated
No
Package Volume
0
Package Qty
1
Base Material
Bronze
Handing
LH
Function
Pivot Set
Finish Description
Satin Bronze
Product Type
Hinge/Pivot
Series
117 Series Pivot
Finish
Satin Bronze
Grade
ANSI/BHMA Grade 9
Manufacturer Parent
Assa Abloy
Hand
Left Hand
Sub-Series
HP_Pivots_rixson_10
ADA Compliant
No
Application
Interior Doors
Function Family
Hinge/Pivot
Standards
ANSI A156.4, Grade 1; ANSI C07162/C07202
Features
Light-Duty/Light Weight Pivot Set; Bottom Pivot Mortised Into Floor; Doors Up to 90" in Height Should Use One Intermediate Pivot. Each Additional 30" of Door Height Warrants Another Intermediate Pivot; Furnished With Wood and Machine Screws
Product Material
Non-Ferrous Base Material
Maximum Door Load
300 lb.
Included Components
Standard Top Pivot 180 Included
Finish Family
Satin Bronze

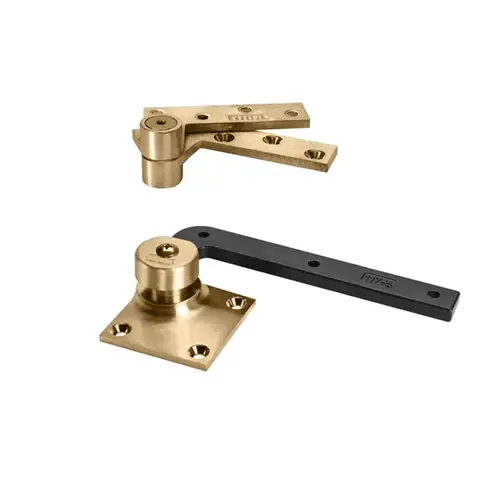

Product Overview
For interior doors. Weight up to 300 lbs and door width up to 3'6. Non-ferrous base metal. Door edges must be beveled 1/8 in 2. Doors up to 90 in height should use one intermediate pivot. Furnished with wood and machine screws. Doors will swing 180° trim permitting. ANSI/C07162/C07202
