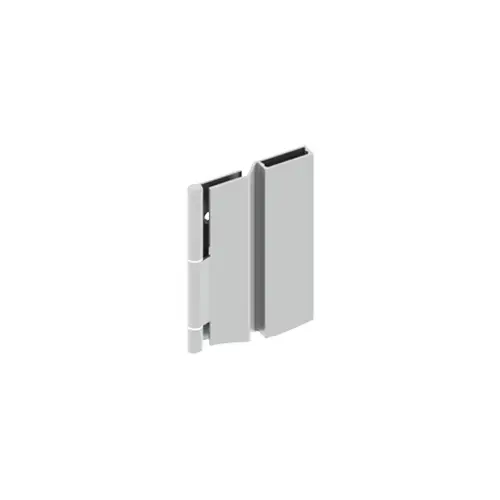

Hager 023279 790-909 119" Full Surface Swing Clear Continuous Hinge with 1/8" Inset Satin Stainless Steel Finish
Item #: 023279 by Hager
UPC #: 041359232797
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- 1/4" Diameter Stainless Steel Pin
- Dual 6/6 Nylon Bearings Between Knuckles
- For Beveled Or Square Edge Doors
- Security Molding
- Useful For Ada Upgrade Work
Finish
Satin Stainless Steel
Series
Hager Continuous Hinge Series
Material
14 Ga. (0.075") Type 304 Stainless Steel
Length
79", 83", 85", 95", 119"
Maximum Door Thickness
1-3/4"
Maximum Door Weight
300 lbs
Maximum Door Length
10'-0"
Fastener Size
#10-24 x 5/8" S/S Dril-Kwik® (metal frame), #1/4-20 x 3/4" 2C Dril-Kwik® (metal door), #1/4-14 x 1" 2C Type AB (wood frame)
Notes
Any nonstandard length hinge may require a custom hole pattern based on the requested length. Consult Hager Companies to address the field prep for the doors and frames.
HINGE SIZE in. - CONTINUOUS
119
Door Reinforcement
Wood - None required up to 200 lbs. For metal doors, a 1/8" (3 mm) thick reinforcement plate is recommended along the hinge edge for proper thread engagement of the adjustment studs.
Frame Reinforcement
None required to 200 lbs. Heavier weight use 16-gauge channel.
Product Overview
Full Surface, 1/8" Inset, Swing Clear, Door of Any Material
Clearance:
1/8" minimum hinge side plus standard lockside clearance
Notes:
Any nonstandard length hinge may require a custom hole pattern based on the requested length. Consult Hager Companies to address the field prep for the doors and frames.
Optional Features:
Wide Throw, Replacement Moldings (M), Security Fasteners, Security Studs, Dutch Door Prep (DUTCH)
Certifications:
UL, ADA
Finishes:
US32D
Length Options:
Standard
Options:
Optional sex bolts available (specify when ordering)
Special Features:
1/4" diameter Stainless Steel Pin. Dual 6/6 Nylon bearings between each knuckle. Useful for ADA upgrade work. Security molding. For beveled or square edge doors. 1/8" inset.
