30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
Series
1500 Series
Finish
Satin Brass
Use With
Cylindrical and Mortise Latchbolts
Grade
Grade 1
Color Code
606/US4
Function
Field Selectable (Safe/Secure)
Fire Rated
3 Hours {A}, Yes
Amp Draw
.24 Amps at 12VDC, .12 Amps at 24VDC
Burglar Rated
Yes
Faceplate Shape
Flat Face, Square Corners
Faceplate Size
4-7/8 In. X 1-1/4 In.
Frame Application
Metal or Wood
Frame Depth
1-3/8 In.
Operating Voltage
12VDC/24VDC
Package Qty
1
Special Marks
Fire rated 3 Hours {A}
Base Material
Brass
Switch Type
None
Dimension
4-7/8" x 2-1/16" x 1-1/8"
Material
Stainless Steel
Strike
Electric Strike
Manufacturer Warranty
1 Year Hassle Free Guarantee, 5 Year Limited Mechanical Warranty, and 1 Year Limited Electrical Warranty
UL Listing Type
UL 1034, UL294, UL10C
Power Supply
Wired
Hazardous Material
No
Strike Dimension
1-1/4" x 4-7/8"
Finish code
606
No of inners
1
Windstorm Rated
Yes
Outdoor Rated
Yes
Latch Specification
Locksets With or Without a Deadbolt
Door Strike
1-3/8"
Endurance Cycles
1,000,000
Fail Safe / Fail Secure
Field Selectable
Preload Capable
No
Lock Type
Mortise or Cylindrical
Dynamic Strength
70 ft-lbs
Product Width
1-3/4"
Product Depth
1-5/8"
Substrate Type
Stainless Steel
Holding Force
1500
Electronic
Yes
Door Type
Metal, Wood
Model
1500C - Complete Electric Strike Pac
Faceplate
4-7/8"
Voltage
12/24 VDC

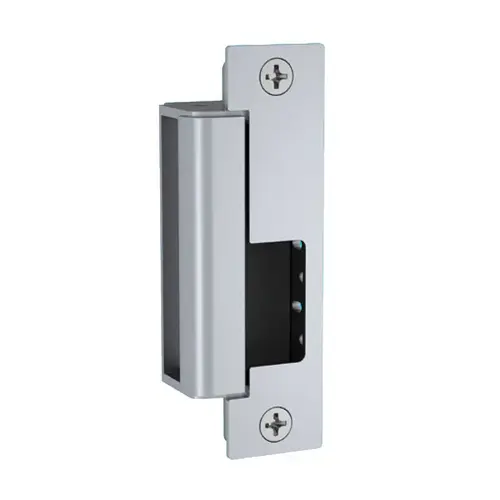

Product Overview
Electric Strike, for Cylindrical or Mortise Latchbolt Locks, Auto-sensing 12-24VDC, Field Selectable Fail Safe/Fail Secure, Includes 1J, 1K, 1KD, 1KM Options, Satin Brass
The HES 1500 Series electric strike is more than a new heavy duty, low profile solution for latchbolt locks. It accommodates every brand of cylindrical or mortise lock designed to work with a 4-7/8" strike plate.
The most advanced, modular, low profile solution for latchbolt locks.
The HES 1500 Series accommodates every brand of cylindrical or mortise lock designed to work with a 4-7/8" strike plate.
