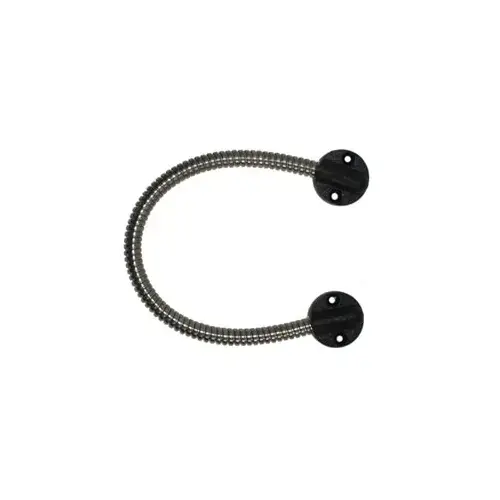

Schlage 798 12 12" Armored 1/2" Door Cord Less Wires
Item #: 798 12 by Schlage Electronics
Brand: Schlage
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
Package Qty
1
Product Type
780 Series Door Cord
Series
Parts/Accessories
For Use With
Electric Exit Devices; Electrified Locks
Cable Length
12 Inch
Warranty
1 Year
Function
Door Cord
Door Swing
Inswing
ADA Compliant
No
Standards
ANSI/UL 10C; CAN/ULC-S104-15
Features
Flexible; Armored
Manufacturer Parent
Allegion
Inside Loop Diameter
3/8 Inch
Outside Loop Diameter
1/2 Inch
Sub-Series
EAC_Door Cords_schlage_electronic_2
Parts and Accessories Type
Installation Accessories
UL Listing Type
ANSI/UL 10C; CAN/ULC-S104-15
Application
Electric Exit Devices; Electrified Locks
Product Overview
Used when installing electric exit devices or electrified locks, armored door cords provide a simple and economical solution for transferring power from frame to door. Schlage flexible door cords are offered in two lengths each with options for less wires or including four, 20 gauge conductor wires (red, green, white and black).
Specifications:
- ANSI/UL 10C, CAN/ULC-S104-15
Acceptable wire size combinations:
- Five 18 gauge.
- Two 18 gauge and four 20 gauge.
- Two 18 gauge and seven 22 gauge.
- Seven 20 gauge.
- Twelve 22 gauge.
3/8" interior diameter; 1/2" outside diameter flexible door cord:
-798-12 - 12" x 1/2" less wires (inswinging).
- 788C-12 - 12" x 1/2" with four 20 gauge, 20" long conductor wires (red, green, white, black).
- 788-18 - 18" x 1/2" less wires (outswinging).
- 788C-18 - 18" x 1/2" with four 20 gauge, 26" long conductor wires (red, green, white, black).
Certification:
- UL 10 C
