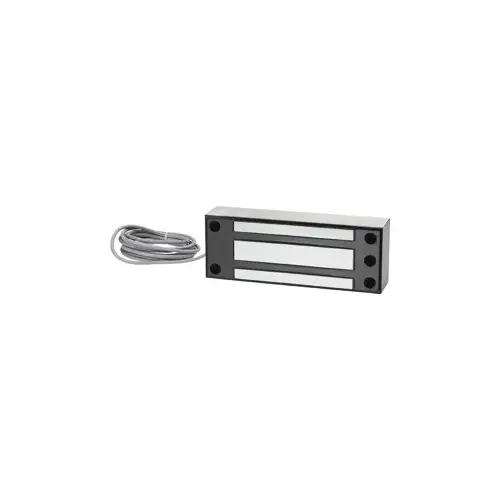

Securitron M62F M62 Magnalock 1200lbs Holding Force, Satin Stainless Steel
Item #: M62F by SECURITRON
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Automatic Dual Voltage Uses 12 or 24 Volt Power Supply and Protects Magnalock
- World Class Technical Support Experts Ready to Assist You in Selecting Hardware, Wiring and Troubleshooting Your Opening
- Collapsing Blind Nuts Securely Anchoring Magnalocks to the Frame With 1000 Pounds of Tensile Strength
- Excellent Product Quality, Magnalocks are Manufactured in an ISO9001 Certified Factory in Phoenix, AZ
- MagnaCare, The Best Warranty in the Industry, Lifetime Replacement, No Fault, No Questions Asked
Finish
Satin Stainless Steel
Series
M62 Series
Color Code
630/US32D
Fire Rated
Yes
Origin
USA
BAA Qualified
Yes
Product Type
Electromagnetic Lock
Alternate Part Number-1
147911
Voltage
24 VDC
Mounting Type
Surface Mount
Grade
ANSI/BHMA Grade 2
Application
Interior, Perimeter and Exterior Access Control; Hollow Metal, Concrete Filled Metal, Wood or Glass with Aluminum Frames and Herculite Doors
Warranty
Lifetime Warranty
Operating Temperature
-40 to 140°F
Function
Magnetic Lock
Holding Force
1200lb
Product Height
3 Inch
Product Length
8 Inch
Strike Type
Standard Strike
ADA Compliant
No
Strike Size
6" L x 1/2" D x 2-3/4" H
Product Depth
2-3/4 Inch
Standards
UL 10C Listed; CAN4-S104, CAN/ULC-S533 Listed; ANSI/UL 294 Listed; CSA-C22.2 No.205 Listed; ANSI/BHMA A156.23, Grade 2; E08501-1000; CSFM - California State Fire Marshal Approved; CE:EN 50081-1(92), EN 61000-6-2(99) Approved
Indoor or Outdoor Use
Indoor/Outdoor
Monitoring Option
No Monitoring
Features
PoE Friendly; Sustainability Documentation; Efficient, Low Power Usage; Fully Sealed; A Strong, Easy-To-Maintain; A Strong, Easy-To-Maintain - No Residual Magnetism; Noise Suppression with Included MOV
Manufacturer Parent
Assa Abloy
Resistance Properties
Rust Resistant; Weatherproof
Conductor Length
10 Feet
Preload Capable
Yes
Sub-Series
M62F
Options
Bond Sensor, Face Drilled, Instant Release
Mounting
Surface Mount
Maglock Type
Single Door
Product Overview
M62: 1,200lbs Holding Force direct mounted Magnalock
The ultimate in Magnalock versatility for indoor/outdoor higher security The M62 is a strong, easy-to-maintain solution for interior, perimeter and exterior access control. With unsurpassed durability, the M62 will last long after most buildings wear out. Flexible mounting options support applications for hollow metal, concrete filled metal, wood, or glass with aluminum frames, and Herculite doors. Options include single and double door configurations, or specialty applications such as gates and fences.
Product Features
Specifications
Certifications
The ultimate in Magnalock versatility for indoor/outdoor higher security The M62 is a strong, easy-to-maintain solution for interior, perimeter and exterior access control. With unsurpassed durability, the M62 will last long after most buildings wear out. Flexible mounting options support applications for hollow metal, concrete filled metal, wood, or glass with aluminum frames, and Herculite doors. Options include single and double door configurations, or specialty applications such as gates and fences.
Product Features
- PoE friendly
- Sustainability documentation
- Efficient, low power usage
- Automatic dual voltage - no field adjustment required
- Fully sealed for weatherproof operations
- Size optimized for use with door closers
- Rust resistant - all ferrous metal surfaces plated for durability
- Instant release circuit - no residual magnetism
- Noise suppression with included MOV
- 10 ft of jacketed, stranded conductor cable
- Ultra-secure collapsing blind nuts mount to door frame for strength and reliability
- MagnaCare Lifetime Replacement No Fault Warranty
Specifications
- Dimensions: 8"L x 1-3/4"D x 3"H
- Electrical: 250mA at 12VDC, 150mA at 24VDC
- Operating Temperature: +40 to +140F, Indoor use only
Certifications
- UL 10C Listed
- CAN4-S104, CAN/ULC-5333 Listed
- ANSI/UL 294 Listed
- CSA-C22.2 No.205 Listed
- ANSI/BHMA A156.23, Grade 1;E08501-1000
- CSFM - California State Fire Marshal Approved
- CE:EN 50081-1(92), EN 61000-6-2(99) Approved
- Environmental Product Declaration
- Health Product Declaration
- CSFM - California State Fire Marshal Approved
