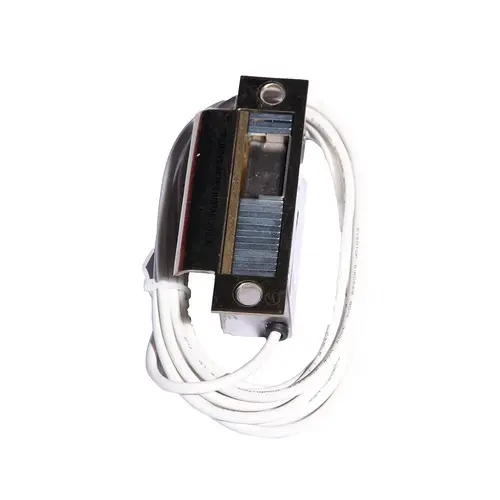

Assa Abloy Electronic Security Hardware - Securitron MUNL-12-US3 12 Volt DC Mortise Unlatch Bright Brass Finish

Mortise Unlatch, 12VDC, for use with Mortise Lock, Bright Brass

Mortise UnLatch is for any application where an electric strike would be used for a mortise type lock. The Mortise UnLatch includes field adjustability for latch and deadlatch positions, releases under pressure and includes a latch status monitoring output. No cutting or altering of the jamb required. Fail secure. Releases under preload. Fits standard ANSI 4-7/8" strike cutout. Motorized, no solenoids. Fully concealed installation. Maintains dead latch function at all times. Continuous duty. Latch status sensor is standard. Holding Force: 1500 lbs [680kg] static. Current Draw: 12 VDC-40 mA continuous, minimum 700 mA when operating. 24 VDC-40 mA continuous, minimum 500 mA when operating. Higher capacity supply (1-4As) is recommended for startup inrush to achieve best operation under pre-load. One model works with most North American Mortise Locks (Sargent 7800 and 8200 require tab kit model #STK-1 for retrofit installations).

All magnalocks include automatic dual voltage as well as collapsing blind nuts.
