CRL's Slimline Series Door Vision Lites are stocked with bronze powder coated frames. Fabricated from 20 gauge CRS, these Vision Lites are available in sizes from 6" x 27" (152 x 686 mm) to 24" x 30" (610 x 762 mm). Featuring trim with radius corners, a continuous glass retainer, a mitered and welded frame, and countersunk holes on the non-corridor side, the Slimline Series is designed for 1-3/4" (44 mm) thick doors, and is listed with both UL and WHI. Custom sizes and finishes are available upon request.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

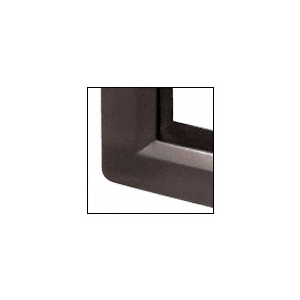

CRL SL12X12 12" x 12" Slimline Series Door Vision Lites Bronze
Item #: SL12X12 by CR Laurence
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Bronze Powder Coat Finish
- Fire Rated
- For Glazing Thickness of 3/16" to 1/4" (5 to 6 mm)
- Low Profile Design Beveled Vision Lite Frame
- You Supply the Glass
Uses Glass Size
11" x 11" (279 x 279 mm)
Exposed Glass
10" x 10" (254 x 254 mm)
Height
12
Finish
Bronze
Material
20 Gauge CRS
Width
12
Glass Thickness
3/16 to 1/4
UL Listed
Yes
Certification
WHI
Note
You Supply Glass
Finish/Color
Bronze
Glass Width (Inches)
11
Glass Height (Inches)
11
Glass Height
11
Glass Width
11
Product Overview
CRL's Slimline Series Door Vision Lites are stocked with bronze powder coated frames. Fabricated from 20 gauge CRS, these Vision Lites are available in sizes from 6" x 27" (152 x 686 mm) to 24" x 30" (610 x 762 mm). Featuring trim with radius corners, a continuous glass retainer, a mitered and welded frame, and countersunk holes on the non-corridor side, the Slimline Series is designed for 1-3/4" (44 mm) thick doors, and is listed with both UL and WHI. Custom sizes and finishes are available upon request.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
