- Hinges are manufactured in accordance with ANSI/BHMA A156.1. Self-closing hinges and pivots are in accordance with ANSI/BHMA A156.17 using three hinges per opening on a 3’0” x 7’0” x 1-3/4” (914 mm x 2134 mm x 44 mm) door.
- Round corners are available in 1/4” (6 mm) (standard) or 5/8” (16 mm) radius.
- Full Mortise Both leaves are mortised, one leaf in the door and one leaf in the frame (wood door or hollow metal door with wood frame or hollow metal frame). Example: BB1279, 4-1/2” x 4-1/2” (114 mm x 114 mm), US26D
- Half Mortise One leaf is mortised in the door and the other is surface applied to the frame (hollow metal door with channel iron frame). Example: BB1109, 4-1/2” (114 mm), US26D
- Full Surface Both leaves are applied to the surface, one to the door and the other to the frame (metal core door or hollow metal door with channel iron frame). Example: BB2171, 5” (127 mm), USP
- Half Surface One leaf is mortised in the frame and the other is surface applied to the face of the door (wood door with wood frame or metal core door with hollow metal frame) Example: BB1163, 5” (152 mm), US26D

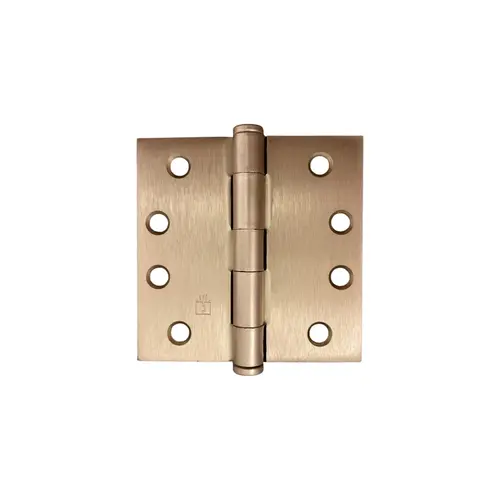

Height
4 In.
Pin Type
Non-Rising Removable
Width
4 In.
Weight
Standard Weight
Color
Oxidized Satin Bronze Over Copper Plated Oil Rubbed
Color Code
612/US10
Mounting Style
Square
Hinge Type
Full Mortise
Bearing Type
Plain
Knuckles
5
Package Qty
1
Base Material
Steel
Finish
Satin Bronze
Finish Description
Satin Bronze
Product Type
Hinge/Pivot
Hinge Size
4 x 4 Inch
Product Material
Steel
Door Thickness
1.375
Material
Steel with Steel Pin
Certifications
ANSI A8133
Fastenersize-Wood
#9 x 1"
Design
Square Corner
Warranty
Lifetime limited
Function
Plain Bearing Hinge
Mount
Full Mortise
Recommended For
Medium Frequency Doors or Doors Requiring Low Frequency Service
Number of Mounting Holes
8 Foot (96 Inches)
Standards
ANSI A8133
Fastener Size
1/2" x 12-24 Machine; 1-1/4" x 12 Wood
Hinge Weight
Standard
Hinge Corner
Square Corner
Function Family
Hinge/Pivot
Knuckle diameter
17/32"
Features
Non-Rising Removable Pin With Button Tip and Plug
ADA Compliant
No
Finish Family
Satin Bronze
Included Components
Fasteners/Screws
Manufacturer Parent
Hager Companies
Distance From Leaf Edge To Swag Line
1-7/8"
Box Dimensions (L x W x H)
6x7.5x11.75
Sub-Series
HP_Commercial_Hinges_hager_22
Number of Knuckles
5
Notes
With door closer use ball bearing hinge.
HINGE WIDTH in. - COMMERCIAL
4
HINGE MISC.
NOT APPLICABLE
HINGE HEIGHT in. - COMMERCIAL
4
HINGE FINISHES - COMMERCIAL
4
HINGE TYPE - COMMERCIAL
NO BEARING / NOT APPLICABLE
HINGE PACKING AND FASTENERS
STANDARD
HINGE LEAF
STANDARD
HINGE TIPS
STANDARD
Applications:
For use with medium frequency doors or doors requiring low frequency service.
Notes:
With door closer use ball bearing hinge.
Certifications:
ANSI A8133
Features:
Non-rising removable pin with button tip and plug
Finishes:
- LS, H2H, USP, US3, US4, US10, US10A, US10B, US15, US26, US26D
- Additional finishes may be available, please contact Hager for availability and lead time.
Options:
- NRP (Non-removable pin)
- Stamped with UL logo when ordered for export
