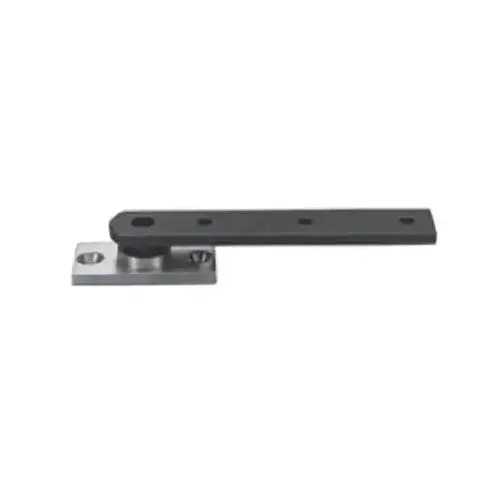

Rixson 128-3/4 606 3/4" Floor Mount Center Hung Pivot Set with 320 Top Pivot Satin Brass Finish
Item #: 128-3/4 606 by Rixson
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Color
Satin Brass
Color Code
606/US4
Hinge Type
Pivot, Center Hung Set
Fire Rated
No
Package Volume
0
Package Qty
1
Base Material
Brass
Finish
Satin Brass
Function
Pivot Set
Finish Description
Satin Brass
Product Type
Hinge/Pivot
Series
128 Series Pivot
ADA Compliant
No
Finish Family
Satin Brass
Included Components
Standard Top Pivot 320
Standards
ANSI C07032
Maximum Door Load
250 lb.
Function Family
Hinge/Pivot
Features
Light-Duty/Light Weight Pivot Set; Bottom Pivot Mounts Directly to Floor; Weight of Door Borne by Floor; Pivot Point Centered in Thickness of Door; Door Must Have Radius on Pivot Edge; Pivot Point Remains Constant At 1-1/4 From the Edge of the Door
Application
Interior Doors
Manufacturer Parent
Assa Abloy
Sub-Series
HP_Pivots_rixson_15
Hazardous Material
No
Dimension
6-9/16" x 7/8" Top and 5-9/32" x 1" Bottom
Material
Non-ferrous base material
Manufacturer Warranty
Limited 2 Year Warranty
Finish code
606
No of inners
1
Product Overview
For interior doors. Weight up to 250 lbs and door sizes up to 3'6 x 8'6. Standard top pivot 320 supplied. Bottom pivot mounts directly to floor. Pivot point remains constant at 1-1/4 from the edge of door. Weight of door borne by floor. Pivot point centered in thickness of door. Door must have radius on pivot edge. Not allowed for use on labeled doors and frames. Furnished with wood and machine screws. ANSI/C07042
