30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
Color
Bright Chrome
Color Code
625/US26
Hinge Type
Pivot, Center Hung Set
Fire Rated
No
Package Volume
0
Package Qty
1
Base Material
Brass or Bronze
Finish
Bright Polished Chrome
Function
Pivot Set
Finish Description
Bright Polished Chrome
Product Type
Hinge/Pivot
Series
128 Series Pivot
ADA Compliant
No
Finish Family
Polished Chrome
Included Components
Standard Top Pivot 320
Standards
ANSI C07032
Maximum Door Load
250 lb.
Function Family
Hinge/Pivot
Features
Light-Duty/Light Weight Pivot Set; Bottom Pivot Mounts Directly to Floor; Weight of Door Borne by Floor; Pivot Point Centered in Thickness of Door; Door Must Have Radius on Pivot Edge; Pivot Point Remains Constant At 1-1/4 From the Edge of the Door
Application
Interior Doors
Manufacturer Parent
Assa Abloy
Sub-Series
HP_Pivots_rixson_15
Grade
Grade 1
ANSI/BHMA Standards
ANSI/BHMA A156.4, Grade 1
Door Weight
Up to 300 lbs
Electronic
No
Door Handing
Non-Handed
Mounting Method
Center Hung
Option
Top Pivot
Pivot Type
Top & Bottom
Substrate Type
Steel
Duty Level
Standard Duty
Hang Type
Center Hung

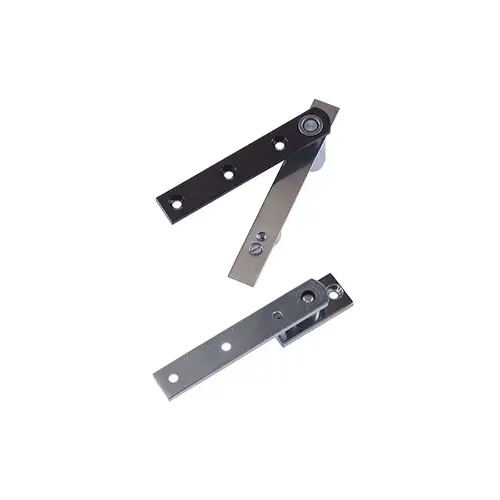

Product Overview
For interior doors. Weight up to 250 lbs and door sizes up to 3'6 x 8'6. Standard top pivot 320 supplied. Bottom pivot mounts directly to floor. Pivot point remains constant at 1-1/4 from the edge of door. Weight of door borne by floor. Pivot point centered in thickness of door. Door must have radius on pivot edge. Not allowed for use on labeled doors and frames. Furnished with wood and machine screws. ANSI/C07042
