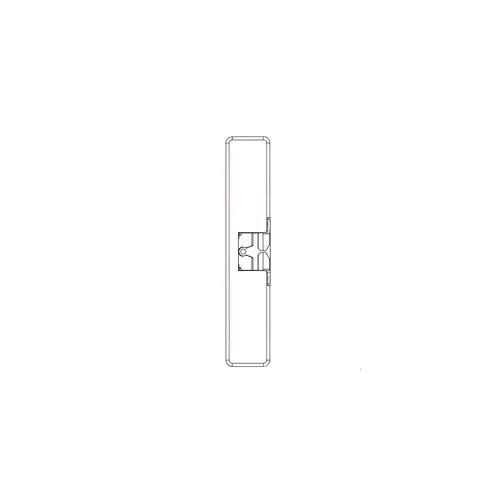

HES 9400 629 LBM 12VDC / 24VDC Electric Strike Body with Latchbolt Monitor Bright Stainless Steel Finish
Item #: 9400 629 LBM by HES
Brand: HES
UPC #: 740090055848
See reviewsSee reviews
In Stock
$708.49
/eachQUICK SHIPPING*Usually ships in 1 business dayIn stock: 6 units available
Finish: Bright Stainless Steel
Model: LBM - Surface Mounted Electric Strike with Latchbolt Monitor
LBM - Surface Mounted Electric Strike with Latchbolt Monitor
LBSM - Surface Mounted Electric Strike with Latchbolt Strike Monitor
None - Surface Mounted Electric Strike
QTY
–
+
+ Add to Wishlist
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Ul 1034 Burglary-Resistant Listed And Suitable For Outdoor Use
- ANSI/BHMA, A156.31 Grade 1 (#E09731, #E09732, #E09373)
- 500,000 Cycle Endurance
- Non Handed
- RoHS Compliant
- ANSI/BHMA A156.31, Grade 1
- Patent 6,390,520;8,454,063
- Patent Pending
- Internally Mounted Solenoid
Finish
Bright Stainless Steel
Function
Field Selectable (Safe/Secure)
Series
9400 Series
Strike
12VDC / 24VDC Electric Strike Body with Latchbolt Monitor
Fire Rated
No
Origin
USA
BAA Qualified
Yes
Package Height
2.25"
Package Length
10.5"
Package Volume
79.734375
Package Width
3.375"
Amp Draw
.45 @ 12V .25 @ 24V
Faceplate Size
9 In. X 1-3/4 In.
Frame Application
Metal or Wood
Holding Force
1500
Keeper Size
PK
Operating Voltage
12VDC/24VDC
Package Qty
1
Base Material
Stainless Steel
Switch Type
LBM
Configuration
Centered
Use With
Rim Exit Devices
Grade
Grade 1
Application
Pullman Latch Rim Panic Device
Color Code
629/US32
Voltage
12/24 VDC
Faceplate
9"
Model
LBM - Surface Mounted Electric Strike with Latchbolt Monitor
Door Type
Metal, Wood
Electronic
Yes
Substrate Type
Stainless Steel
Product Depth
1-3/4"
Product Width
9/16"
Dynamic Strength
70 ft-lbs
Lock Type
Exit Device
Preload Capable
No
Fail Safe / Fail Secure
Field Selectable
Endurance Cycles
1,000,000
Latch Specification
Latchbolt
Outdoor Rated
Yes
Windstorm Rated
No
Product Overview
Fail Safe/Fail Secure, Complete 12/24VDC Electric Strike, Surface Mounted, 1/2" Thickness, Latchbolt Monitor, Bright Stainless Steel
The 9400 series is a slim-line, surface mounted electric strike designed to accommodate rim exit devices with a 1/2" Pullman latch. All components are completely encased within its 1/2" thick stainless steel housing, so no cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt, and install.
The 9400 Series is a surface mounted electric strike that is designed to accommodate rim exit devices with a 1/2" Pullman latch.
This slim-line 9400 Series electric strike comes with all components that are completely encased within its 1/2" thick stainless steel housing, so no curring on the frame is reuiqred for installation.
