In Stock $504.57 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Ul 1034 Burglary-Resistant Listed And Suitable For Outdoor Use
- ANSI/BHMA, A156.31 Grade 1 (#E09731, #E09732, #E09373)
- 500,000 Cycle Endurance
- Non Handed
- RoHS Compliant
- ANSI/BHMA A156.31, Grade 1
- Patent 6,390,520;8,454,063
- Patent Pending
- Internally Mounted Solenoid
Finish
Satin Stainless Steel
Function
Fail Safe or Secure
Strike
12VDC / 24VDC Electric Strike Body with Latchbolt Monitor
Fire Rated
No
Origin
USA
BAA Qualified
Yes
Package Height
2.25"
Package Length
10.5"
Package Volume
79.734375
Package Width
3.375"
Amp Draw
.45 @ 12V .25 @ 24V
Faceplate Size
9 In. X 1-3/4 In.
Frame Application
Metal or Wood
Holding Force
1500
Keeper Size
PK
Operating Voltage
12VDC/24VDC
Package Qty
1
Base Material
Stainless Steel
Switch Type
LBM
Configuration
Centered
Use With
Rim Exit Devices
Grade
Grade 1
Application
Metal and Wood Frames
Color Code
630/US32D
Finish Description
Satin Stainless Steel
Voltage
24 VDC
Product Type
Electric Strike
Warranty
5 Year
Aluminium Bottle Contents
Swinging
ProductType
Manual
Mounting Type
Surface Mount
For Use With
Rim Devices
Strength
1500 (Static); 70 (Dynamic) lb; ft-lb
Current Draw
450 mA at 12 VDC/250 mA at 24 VDC
Latch Throw
1/2 Inch
Electric Options
LBM-Latchbolt Monitor
Product Height
9 Inch
Product Length
1-3/4 Inch
Product Width
3/4 Inch
ADA Compliant
No
Finish Family
Stainless Steel
Included Components
Spacer Plate
Product Material
Stainless steel
Standards
ANSI/BHMA A156.31 Grade 1; UL 1034 Burglary-Resistant Listed and Suitable for Outdoor Use; UL 294 Listed; UL 305 Listed; RoHS Compliant
Function Family
Electric Strike
Features
Non-Handed; Horizontal Adjustability; Tamper Resistant
Manufacturer Parent
Assa Abloy
Sub-Series
EAC_Electric_Strike_hes_21
Works with rim exit devices up to 1/2" throw latchbolt
The slim-line, surface mounted solution.

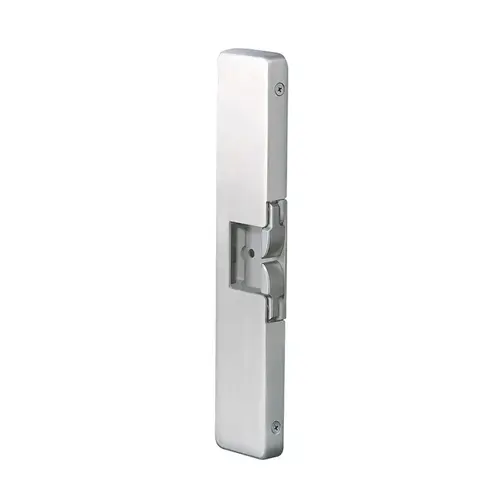

The HES 9400 Series Electric Strike is a slimline, surface mounted electric strike designed to accommodate rim exit devices with a 1/2" throw Pullman latchbolt. All components are completely encased within its 1/2" thick stainless steel housing, so no cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt, and install.
An 1/8" spacer plate is provided to accommodate varying door gaps. The HES 9400 exceeds Grade 1 standards for strength and performance. It is field selectable for fail safe/fail secure operation, and for 12 or 24 VDC. The HES 9400 features a smooth cover to conceal the mounting screws and provide a sleek surface for superior looks.
Features:- Installs in metal and wood frames
- Wood screws not provided
- One 1/8" [3.2mm] spacer plate included
- Decorative cover for sleek look
- Stainless steel construction
- Tamper resistant
- Static strength 1,500 lbs
- Dynamic strength 70 ft-lbs
- Endurance 1 million cycles
- Field selectable fail safe/fail secure
- Horizontal adjustability
- Non-handed
- Internally mounted solenoid
- Accommodates up to 1/2" [12.7mm] Pullman latch
- SecuriCare five-year, no-fault, no questions asked warranty
- (Addition of HES SMART Pac® III extends the warranty to 10 years)
- ANSI/BHMA A156.31, Grade 1
- UL 1034 burglary-resistant listed and suitable for outdoor use
- UL 294 listed
- RoHS compliant
- Metal
- Wood
- Dual voltage 12/24 VDC
- 450 mA at 12 VDC/250 mA at 24 VDC
- 630 - Satin stainless steel
- 605 - Bright brass
- 606 - Satin brass
- 612 - Satin bronze
- 613 - Bronze toned
- 613E - Dark oxidized satin bronze
- 629 - Bright stainless steel
