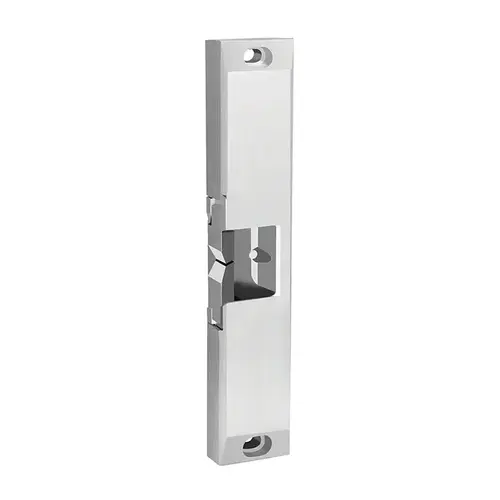

9600 Surface Mounted Electric Strike for Rim Device, Satin Stainless Steel

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

HES 9600 630 LBM 9600 Surface Mounted Electric Strike for Rim Device, Satin Stainless Steel

Item #: 9600 630 LBM by HES

UPC #: 740090040851

See reviewsSee reviews
See reviews summary
In Stock

$547.29

/each
SAVE UP TO 54.73
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 422 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Field Selectable Fail Safe/Fail Secure
  • ANSI 250.13-2003 Severe Windstorm listed
  • Florida Building Code Approved (FL#14307)
  • 1,000,000 Cycle Endurance
  • Non Handed
  • UL 1034 burglary-resistant listed and suitable for outdoor use
  • UL 294 (6th Edition) listed
  • ANSI/BHMA A156.31, Grade 1
  • Internally Mounted Solenoid
  • ANSI/BHMA, A156.31 Grade 1 (#E09731, #E09732, #E09373)
  • RoHS compliant
  • Patent # 6,390,520

Finish

Satin Stainless Steel

Function

Fail Safe or Secure

Series

9000 Series

Strike

12VDC / 24VDC Electric Strike Body with Latchbolt Monitor

Fire Rated

No

Origin

USA

BAA Qualified

Yes

Package Height

2.25"

Package Length

10.5"

Package Volume

79.734375

Package Width

3.375"

Amp Draw

.45 @ 12V .25 @ 24V

Faceplate Size

9 In. X 1-3/4 In.

Frame Application

Metal or Wood

Holding Force

2000

Keeper Size

PK

Operating Voltage

12VDC/24VDC

Package Qty

1

Base Material

Stainless Steel

Switch Type

LBM

Configuration

Centered

Use With

Rim Exit Devices

Grade

Grade 1

Application

Metal and Wood Frames

Color Code

630/US32D

Voltage

24 VDC

Finish Description

Satin Stainless Steel

Product Type

Electric Strike

Manufacturer Parent

Assa Abloy

For Use With

Rim Devices

Product Width

3/4 Inch

Latch Throw

3/4 Inch

Sub-Series

EAC_Electric_Strike_hes_24

ADA Compliant

No

Mounting Type

Surface Mount

Product Height

9 Inch

Function Family

Electric Strike

Standards

ANSI/BHMA A156.31, Grade 1; UL 1034 Burglary Resistant Listed and Suitable For Outdoor Use; UL 294 Listed; UL 305 Listed; RoHS Compliant; ANSI/SDI A250.13 Windstorm Resistant; Florida Building Code Approved; TAS 201, 202, 203; ANSI-ASTM E330

Electric Options

LBM-Latchbolt Monitor

Features

Non-Handed; Horizontal Adjustability; Tamper Resistant

Product Material

Stainless steel

Strength

1500 (Static); 70 (Dynamic) lb; ft-lb

Current Draw

450 mA at 12 VDC/250 mA at 24 VDC

Product Length

1-3/4 Inch

Warranty

5 Year

Included Components

Spacer Plate

Finish Family

Stainless Steel

Aluminium Bottle Contents

Swinging

ProductType

Automatic;Manual

Alternate Part Number-1

161743

Dimension

9" x 3/4" x 1-3/4"

Material

Stainless Steel

Manufacturer Warranty

1 Year Hassle Free Guarantee, 5 Year Limited Mechanical Warranty, and 1 Year Limited Electrical Warranty

UL Listing Type

UL 1034, UL294, UL305

Power Supply

Wired

Hazardous Material

No

Strike Dimension

1-3/4" x 9"

Finish code

630

No of inners

1

Product Overview
9600 SeriesSurface Mounted Electric Strike

Works with rim exit devices up to a 3/4" throw Pullman latchbolt

The stylish windstorm resistant, surface mounted solution.

The HES 9600 Series Electric Strike is a windstorm resistant, surface mounted electric strike designed to accommodate rim exit devices with a 3/4" throw Pullman latchbolt. All components are completely encased within its 3/4" thick stainless steel housing, so no cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt and install. Adjustments have never been easier as the base is now separate from the cover. It is field selectable for fail secure or fail safe operation, and for 12 or 24 VDC.

The HES 9600 is a surface mounted electric strike designed with the strength and durability required to exceed the severe forces of ANSI Windstorm testing

Features:
  • Installs in metal or wood frames
  • (wood screws not included)
  • Separate base and decorative cover for easy adjustments
  • Stainless steel construction
  • Tamper resistant
  • Static strength 2,000 lbs
  • Dynamic strength 120 ft-lbs
  • Endurance 1 million cycles
  • Field selectable fail safe/fail secure
  • Horizontal adjustment
  • Non-handed
  • Internally mounted solenoid
  • Accommodates up to 3/4" [19mm] Pullman latch
  • SecuriCare five-year, no-fault, no questions asked warranty
  • (Addition of HES SMART Pac® III extends the warranty to 10 years)
Certifications:
  • ANSI/BHMA A156.31, Grade 1
  • UL 1034 burglary-resistant listed and suitable for outdoor use
  • UL 294 listed
  • RoHS compliant
  • ANSI/SDI A250.13 windstorm resistant
  • Florida Building Code approved TAS 201, 202, 203
  • ANSI-ASTM E330
Frame Application:
  • Metal
  • Wood
Electrical (DC Continuous Duty):
  • Dual voltage 12/24 VDC
  • 450 mA at 12 VDC/250 mA at 24 VDC
Finishes:
  • 630 - Satin stainless steel
  • 605 - Bright brass
  • 606 - Satin brass
  • 612 - Satin bronze
  • 613 - Bronze toned
  • 613E - Dark oxidized satin bronze
  • 629 - Bright stainless steel
