HES 4500C 612 12VDC / 24VDC Heavy Duty Electric Strike Satin Bronze Finish
Item #: 4500C 612 by HES
UPC #: 740090010489
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Ul 10C Fire-Rated, 3 Hour Single Door (Fail Secure Only)
- UL 10C fire rated, 3 hour (fail secure only)
- 1,000,000 Cycle Endurance
- CAN4-S104 (ULC-S104) fire door conformant
- Non Handed
- UL 1034 burglary resistant listed
- ANSI/BHMA A156.31, Grade 1
- ANSI/BHMA A156.31, Grade 1 (#E09321, #E09322, #E09323)
- Internally Mounted Solenoid
- NFPA-252 fire door conformant
- ASTM-E152 fire door conformant
- California Fire Marshall Listed
- Patent #5,934,720
Strike
12VDC / 24VDC Heavy Duty Electric Strike
Function
Field Selectable (Safe/Secure)
Series
4500 Series
Finish
Satin Bronze
Fire Rated
3 Hours {A}, Yes
Origin
USA
BAA Qualified
Yes
Package Height
2.25"
Package Length
10.5"
Package Volume
79.734375
Package Width
3.375"
Amp Draw
.24 @ 12V .12 @ 24V
Faceplate Size
4-7/8 In. X 1-1/4 In.
Frame Application
Metal or Wood
Holding Force
3000
Keeper Size
3/4 In.
Operating Voltage
12VDC/24VDC
Package Qty
1
Special Marks
Fire rated 3 Hours {A}
Base Material
Bronze
Switch Type
None
Configuration
Universal
Use With
Cylindrical Locks, Mortise Exit and Latch Locks
Grade
Grade 1
Application
3/4" Latchbolt
Color
Satin Bronze Clear Coated
Color Code
612/US10
Product Type
4500 Strikes
Product Overview
Fail Safe/Fail Secure, Complete 12/24VDC Electric Strike, Low Profile, Fire Rated, Satin Bronze

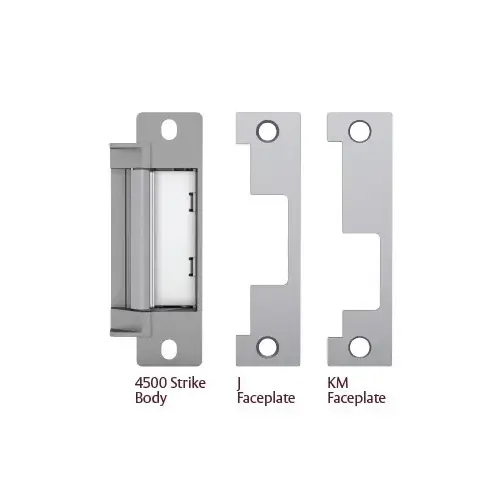

The 4500C series electric strike is designed for installation in 2" UL 10C fire-rated frames with 1/2" drywall penetration. The 4500C features a low profile 1-3/8" depth, heavy-duty stainless steel construction. Its strength is derived from a unique keeper pin locking design, enabling the 4500C to exceed the ratings of the frame, door and locking hardware. Each Complete Pac conveniently paris the reliabilty of an HES electric strike with the flexibility of multiple faceplates in a single simple package. The 4500C includes a 4500 strike body and two interchangeable faceplates to accommodate most cylindrical and mortise latchbolts (without deadbolts).
The 4500C series electric strike is designed for installation in 2" UL 10C fire-rated frames with 1/2" drywall penetration.
The 4500C features a low profile 1-3/8" depth, heavy-duty stainless steel construction. Its strength is derived from a unique keeper pin locking design, enabling the 4500C to exceed the ratings of the frame, door and locking hardware.
