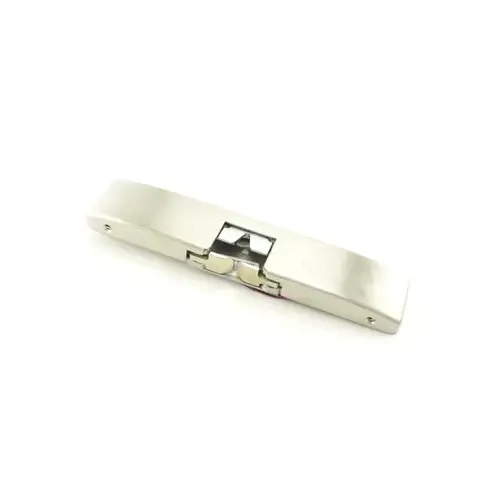

HES 9600630LBMN 12VDC / 24VDC New Style Electric Strike Body with Latchbolt Monitor Satin Stainless Steel Finish
Item #: 9600630LBMN by HES
UPC #: 740090040790
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Field Selectable Fail Safe/Fail Secure
- 1,000,000 Cycle Endurance
- Non Handed
- ANSI/BHMA A156.31, Grade 1
- Internally Mounted Solenoid
Finish
Satin Stainless Steel
Function
Fail Secure
Strike
12VDC / 24VDC New Style Electric Strike Body with Latchbolt Monitor
Series
9600 Series
UNSPSC
46171500
Product Overview
The non-handed 9600 series Genesis is a windstorm-rated, surface-mounted electric strike designed to accommodate rim exit devices with a 3/4" throw latchbolt. All components are completely encased within its 3/4" thick stainless steel housing, so no cutting on the frame is required for installation.
Simply place the electric strike on the surface of the frame, align it with the exit latchbolt, and install. It™s field selectable for fail secure and fail safe operation, as well as for 12VDC or 24VDC.
Standard Features:
- Internally Mounted Solenoid
- Horizontal Lockdown Screws
- Plug-In Connectors
Specifications:
- Static Strength: 1,500lbs.
- Dynamic Strength: 70™ per Pound
- Endurance: 1,000,000 Cycles
- Durability Minimum: 500,000 Cycles
- Dimensions: 1-3/4" x 9"
This Strike Also Offers:
- Dual Locking
- Continuous-Duty Operation
- Tamper Resistance
- Low Current Draw
