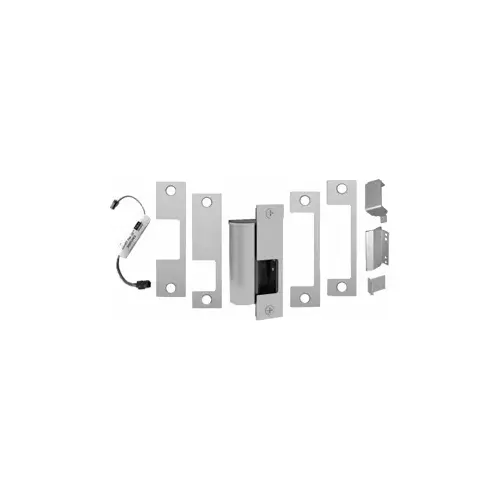

HES 1006CS 630 1006 Series Electric Strike
Item #: 1006CS 630 by HES
In Stock $609.84 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- UL 10C fire-rated, 3 hour single door (fail secure only)
- UL 10C fire-rated, 1-1/2 hour double door (fail secure only)
- 1,000,000 Cycle Endurance
- Non Handed
- CAN4-S104(ULC-S104) fire door conformant
- ANSI A250.13-2003 windstorm listed
- Internally Mounted Solenoid
- UL 1034 burglary-resistant listed and suitable for outdoor use
- ANSI/BHMA A156.31, Grade 1
- NFPA-252 fire door conformant
- ASTM-E152 fire door conformant
- MEA New York City accepted
- Florida Building Code approved
- Patents #6021038 & 6595564 & 9,183,976
Finish
Satin Stainless Steel
Function
Fail Secure
Strike
12VDC / 24VDC Smart Strike Electric Strike Body
Frame Application
Metal or Wood
Package Length
10.5"
Base Material
Stainless Steel
Switch Type
None
BAA Qualified
Yes
Holding Force
3000
Origin
USA
Color Code
630
Package Width
3.375"
Package Height
2.25"
Package Qty
1
Application
Metal and Wood Frame
Operating Voltage
12VDC/24VDC
Configuration
Universal
Special Marks
Fire rated 3 Hours {A}
Fire Rated
3 Hours {A}, Yes
Grade
Grade 1
Keeper Size
1 In.
Amp Draw
.45 @ 12V .25 @ 24V
Package Volume
79.734375
Use With
Cylindrical Locks, Mortise Exit and Latch Locks
Voltage
24 VDC
Finish Description
Satin Stainless Steel
Product Type
Electric Strike
Warranty
SMART Pac III 10 Year
Aluminium Bottle Contents
Swinging
ProductType
Manual
Sub-Series
1006CS-630
Manufacturer Parent
Assa Abloy
Current Draw
450mA; 250mA
Strength
2500 (Static); 350 (Dynamic) lb; ft-lb
For Use With
All Cylindrical and Mortise Locksets
Features
Dual Interlocking Plunger; Tamper Resistant; Endurance 1 Million Cycles; Non-Handed; Plug-in Connector; Windstorm Resistant; Outdoor Rated; Fire Rated; Burglary Rated
Function Family
Electric Strike
Standards
ANSI/BHMA A156.31, Grade 1; UL 1034 Listed; UL 294 Listed; RoHS Compliant; CAN/ULC-S104 Fire Door Conformant; NFPA-252 Fire Door Compliant; ASTM-E152 Fire Door Compliant; ANSI/SDI A250.13 Windstorm Resistant; ANSI-ASTM E330; UL 10C Listed
Product Material
Stainless steel
Included Components
Brackets; Trim Enhancer
Finish Family
Stainless Steel
ADA Compliant
No
Product Length
4-7/8 Inch
Product Height
1-11/16 Inch
Fail Status
Fail Secure
Lockset Type
Cylindrical, Mortise, Specialty
Throw
1/2", 5/8"
Alternate Part Number-1
148861
Handing
Non-Handed
Works with all cylindrical and mortise locksets with or without a deadbolt
The strongest, most versatile electric strike available.
The HES 1006 Series Electric Strike is the strongest and most versatile electric strike available. The dual interlocking plunger design and heavy duty stainless steel construction enables it to exceed every standard developed for electric strikes. With multiple faceplate options, the HES 1006 will fully accommodate every lock designed to work within an ANSI 4-7/8" strike plate. Tested to exceed 3,000 lbs of static strength, 350 ft-lbs of dynamic strength and factory tested to exceed 1 million cycles of operation, the HES 1006 is in a class of its own.
Features:- Stainless steel construction
- Tamper resistant
- Static strength 2,500 lbs
- Dynamic strength 350 ft-lbs
- (fail secure)
- Endurance 1 million cycles
- Fail secure (standard)
- Non-handed
- Accommodates up to 1" [25.4mm] deadbolt
- Plug-in connector
- Full keeper shims for horizontal adjustment
- Trim enhancer
- Strike body depth 1-11/16" [43mm]
- SecuriCare five-year, no-fault, no questions asked warranty
- (Addition of HES SMART PacĀ® III extends the warranty to 10 years)
- ANSI/BHMA A156.31, Grade 1
- UL 1034 burglary-resistant listed and suitable for outdoor use
- UL 294 listed
- RoHS compliant
- UL 10C fire rated, 3-hour single door
- (fail secure only)
- UL 10C fire rated, 1-1/2 hour double door
- (fail secure only)
- CAN/ULC-S104 fire door conformant
- NFPA-252 fire door compliant
- ASTM-E152 fire door compliant
- ANSI/SDI A250.13 windstorm resistant
- Florida Building Code approved TAS 201, 202, 203
- ANSI-ASTM E330
- Sustainability documentation
- Metal
- Wood
- Dual Voltage 12/24 VDC
- 450 mA at 12 VDC / 250 mA at 24 VDC
- 630 - Satin stainless steel
- 605 - Bright brass
- 606 - Satin brass
- 612 - Satin bronze
- 613 - Bronze toned
- 629 - Bright stainless steel
- BLK - Black
