Features
Color
Satin Aluminum Clear Anodized
Color Code
628/US28
Voltage
12 VAC/VDC
Mounting Type
Hollow Metal; Aluminum; Wood Frames
Hand
Reversible-Non Handed
Warranty
Limited Warranty-36 Months
Function
Electric Strike
Strength
1400 lbs. (635 KG)
Current Draw
12 VAC; 12 VDC
Finish Description
Satin Aluminum
Faceplate Shape
Ansi Faceplate
Keeper Size
5/8" Maximum Latch Projection Possible With 1/8" Door/Frame Clearance - 3/4"
Finish Family
Aluminum
Product Material
Anodized Aluminum
Duty
Fail-Secure
Faceplate Dimension
4-7/8" x 1-1/4"
Function Family
Electric Strike
Features
Keeper Depth - 5/8" Maximum Latch Projection Possible With 1/8" Door/Frame Clearance - 3/4"
Product Type
Electric Strike
Series
1400 Series
Manufacturer Parent
ROFU Security International
Sub-Series
EAC_Electric_Strike_ROFU_1
Finish
Satin Aluminum (US28)
Faceplate
4-7/8"
Electronic
Yes
Fail Safe / Fail Secure
Fail-Secure
Product Overview

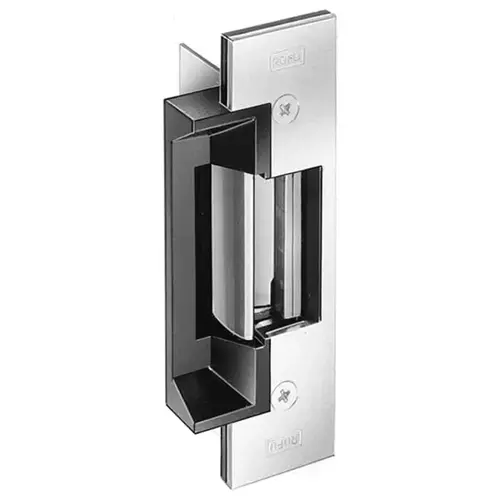

The ROFU International Corp 1400 Series 1402-05 US28 is a fail-secure electric strike designed for access control systems, compatible with mortise and cylindrical locksets in both commercial and residential applications. It operates on 12 VAC/VDC and features a 1-1/4" x 4-7/8" ANSI size faceplate in a US28 Satin Anodized Aluminum finish. Constructed with a corrosion-resistant case and moving parts, this electric strike offers a tamper strength of 1400 lbs (635 kg) and is rated for 500,000 cycles. It is reversible for non-handed installations and suitable for hollow metal, aluminum, or wood door frames. The keeper depth accommodates a 5/8" maximum latch projection.
