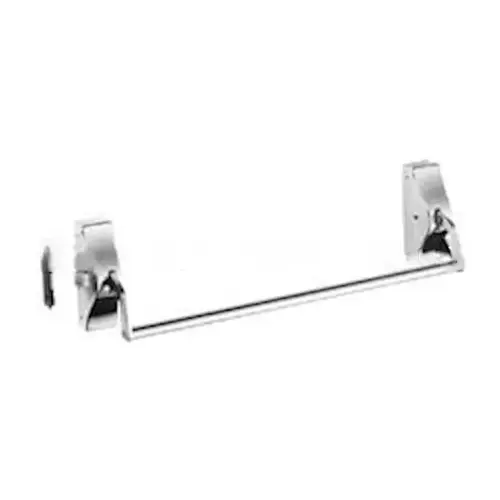

Yale Commercial 1500 36 626 RHR 1500 Series Exit Device, Satin Chrome

Item #: 1500 36 626 RHR by Yale

See reviewsSee reviews
See reviews summary

$1,824.84

/each
SAVE UP TO 182.48
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Available in rim, mortise, surface vertical rod and concealed vertical rod configurations
  • Certified ANSI/BHMA A156.3, Grade 1.
  • Lever, knob, handle and pull trim designs offer variety and permit hardware balance throughout a building
  • 2-point hex-key dogging for standard devices allows quiet push-pull door operation during peak traffic hours
  • Standard outside trim available with a choice of Yale 6 and 7-pin, interchangeable core, patented and security rim cylinders, keyed as needed
  • UL/cUL Listed for use on fire doors having a rating up to and including 3-hours unless otherwise noted
  • ISO 9001: Designed and manufactured under a certified ISO 9001 quality system
  • Warranty: One year warranty. Trims carry a five year warranty.

Hand

Right Hand Reverse

Color

Satin Chrome

Color Code

626/US26D

Device Length

36 Inch (3 Foot)

Fire Rated

No

Device Type

Rim Device

Dogging Options

Hex Key Dogging

Includes Trim

No

Package Qty

1

Physical Appearance

Wide Stile Crossbar

Finish

Satin Chrome

Handing

Right Hand Reverse

Function

Exit Only

Stile

Wide Stile

Finish Description

Satin Chrome

Product Type

Exit Device

Series

1500 Crossbar

Length

3

Application

Single Swing Doors; Pairs of Doors With Removable Mullions

Bolt Throw

3/4 Inch

Latch Type

Deadlocking Pullman-Type

ADA Compliant

No

Finish Family

Satin Chrome

Standards

ANSI/BHMA A156.3 Type 1, Grade 1; UL/cUL Listed: FVSR/FVSR7

Stile Width

4-1/2 Inch

Device Bar Projection

Active: 5-5/8 Inch; Depressed: 4-1/2 Inch

Device Rating

Panic Exit Hardware

For Door Thickness

1-3/4 Inch

Function Family

Exit Only Device

Features

Great for Retrofit Applications; Easy Installation; Strong and Reliable; Enables Quiet Push-Pull Door Operation During Peak Traffic Hours; 1 Year Limited Warranty

Door Material

Metal; Wood or Composite

Manufacturer Parent

Assa Abloy

Sub-Series

1500-36-626-RHR

Product Overview
The 1500 is a traditional rim exit device for single swing doors or pairs of doors with mullions of metal wood or composite. Door Opening Width -36 for 30 - 36 (76cm - 91cm) doors Door Thickness 1-3/4 (44mm) standard Minimum Stile Width 4-1/2 (114mm) Projection 5-5/8 (143mm) active 4-1/2 (114mm) depressed. Latchbolt 3/4 (19mm) deadlocking stainless steel pullman-type Strike 799 (panic & fire) 793 optional (double door application) Fasteners Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware. Dogging Hex key dogging supplied standard on panic devices Options Sex nuts and bolts Warranty 1-year limited
