HES 1500C-LM BSP 1500C Series Complete Electric Strike with LM Flat Black Coated
Item #: 1500C-LM BSP by HES
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Use With
Cylindrical and Mortise Latchbolts
Grade
Grade 1
Color
Flat Black Coated
Color Code
622/US19
Function
Field Selectable (Safe/Secure)
Fire Rated
3 Hours {A}, Yes
Amp Draw
.24 Amps at 12VDC, .12 Amps at 24VDC
Burglar Rated
Yes
Faceplate Shape
Flat Face, Square Corners

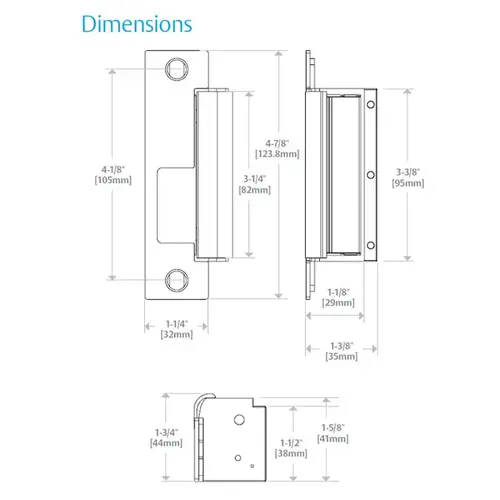

Faceplate Size
4-7/8 In. X 1-1/4 In.
Frame Application
Metal or Wood
Frame Depth
1-3/8 In.
Operating Voltage
12VDC/24VDC
Package Qty
1
Base Material
Brass or Bronze
Switch Type
Lock Monitor
Voltage
12/24VAC/DC
Mounting Type
Surface Mount
For Use With
All Brands of Cylindrical and Mortise Locksets Without a Deadbolt
Application
Metal and Wood Frame
Warranty
SecuriCare 5 Year
Strength
1500 (Static); 70 (Dynamic) lb; ft-lb
Current Draw
240mA; 120mA
Finish Description
Black
Electric Options
LM-Lock Monitor
Product Height
1-3/8 Inch
Product Length
4-7/8 Inch
ADA Compliant
No
Finish Family
Black
Included Components
1LB Faceplate Kit
Product Material
Stainless steel
Standards
ANSI/BHMA A156.31, Grade 1; UL 1034 Listed; UL 294 Listed; RoHS Compliant; UL10C Listed; CAN/ULC-S104 Fire Door Conformant; NFPA-252 Fire Door Compliant; ASTM-E152 Fire Door Compliant; California Fire Marshal Listed; ANSI/SDI A250.13; ANSI-ASTM E330
Faceplate Dimension
4-7/8" x 1-1/4"
Function Family
Electric Strike
Features
Tamper Resistant; Endurance 1 Million Cycles; Non-Handed; Field Adjustable Integrated Shim; Windstorm Resistant; Outdoor Rated; Burglary Rated; POE Friendly
Product Type
Electric Strike
Series
1500C Series
Manufacturer Parent
Assa Abloy
Sub-Series
EAC_Electric_Strike_hes_2
Product Overview
Electric Strike, for Cylindrical or Mortise Latchbolt Locks, Auto-sensing 12-24VDC, Field Selectable Fail Safe/Fail Secure, Includes 1J, 1K, 1KD, 1KM Options, Lock Monitor, Black
The HES 1500 Series electric strike is more than a new heavy duty, low profile solution for latchbolt locks. It accommodates every brand of cylindrical or mortise lock designed to work with a 4-7/8" strike plate.
