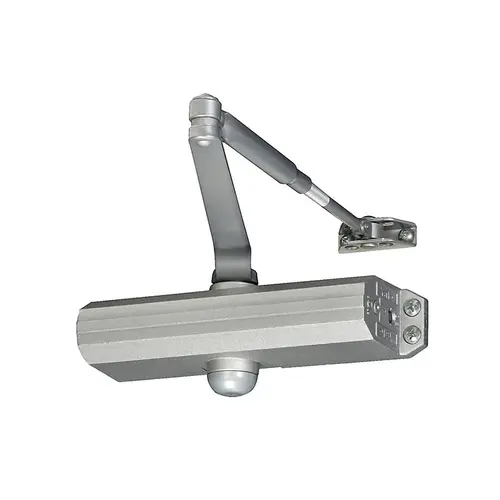

Door Closer, 689 Aluminum Painted, Hold Open Arm
51 SeriesDoor Closers

Yale® 51 Series Closers are designed to fit almost any application and are the choice of engineers worldwide. They are ideal for use with aluminum store front doors and frames, yet they also complement wood or metal door installations. Non-handed, the 51 series is available as multi-sized units and offers tri-packed packaging on standard non-hold open and hold open closers.

This UL listed, Grade 1 closer has a proven history of quality and tradition. With a variety of plates, brackets, precise valve adjustment and a complete range of arms, these closers can be used on retail stores, warehouses, restaurants, garages, or manufacturing and utility buildings. With a full feature set and stylish design, Yale Works for You℠.

Standards and Features:

• Exceeds 25 million cycles based on internal cycle testing

• Non-handed

• Tri-packed
• (regular arm, top jamb and parallel arm installations)

• Rack-and-pinion design

• Cast aluminum body

• 1-3/8" (35mm) diameter piston

• 5/8" (16mm) diameter pinion journals

• Standard, separate and independent, latch, sweep and backcheck intensity valves

• 2-7/8" (73mm) projection

• All standard arm applications allow doors to swing 180°, conditions permitting

• 15-year limited warranty

• Staked valves

Benefits: Reliable:

• High strength aluminum alloy closer body provides for long life; independent latch, sweep and backcheck intensity valves ensure positive control

Cost of Ownership:

• Exceeds 25 million cycles (independently verified) for long life; 15-year limited warranty

Sustainable:

• Longer life results in fewer replacements and less material used; covered by SARGENT Endof- Life Recycling Program; Environmental Product Declaration (EPD) available, based on life cycle assessment

Flexible:

• Adjustable 1-6 spring makes installation selection easier and reduces inventory for customers; Non-handed for installation on right- or left-hand swing doors

Features: Aluminum Alloy Housing:

• Closer bodies are constructed of a special aluminum alloy, carefully selected to accommodate interaction with steel components and operating conditions.

Rack & Pinion Operation:

• Provides a smooth constant control of the door through its full opening and closing cycle. 180° door swing can be achieved when door, frame, hardware and arm function do not limit door swing.

Non-handed:

• With few exceptions all series 51 door closers are nonhanded and can be installed on either right- or left-hand swing doors. Pinion shaft extends vertically through the closer body in both directions. Some options, (such as Parallel Rigid Hold Open Arms) will require that the hand of the closer be specified.

Tri-packed:

• 51 comes with screws, brackets & soffit plate to allow for regular, top jamb, & parallel arm installations.

Sweep Speed Control Valve:

• Allows adjustment of door's speed from the door's full open position down to approximately 10° from the closed position.

Latch Speed Control Value:

• Allows adjustment of door speed from approximately 10° down to the door's fully closed position.

Adjustable Backcheck Cushion Valve:

• Provides control of the door in the opening cycle, beginning at approximately 75° of door opening. It slows/ cushions the door opening, when the door is forcibly opened beyond its pre-adjusted opening speed limits.

Closer Fluid:

• All door closers are supplied with a temperature stable, multi-viscosity fluid. This fluid will permit the door closer to perform within a wide temperature range: from very high to as low as -40°F.

Warranty:

• These closers carry a limited fifteen-year warranty against defects and a limited lifetime warranty on the aluminum housing.

Finishes: 600*:

• Primed for Painting

605^:

• Bright Brass, Clear Coated

606^:

• Satin Brass, Clear Coated

611^:

• Bright Bronze, Clear Coated

612^:

• Satin Bronze, Clear Coated

613:

• Dark Oxidized Satin Bronze, Oil Rubbed

613E^:

• Dark Oxidized Satin Bronze - equivalent

625^:

• Bright Chrome Plated

626^:

• Satin Chrome Plated

689:

• Aluminim Painted

690:

• Dark Bronze Painted

691:

• Light Bronze Painted

693:

• Black Painted

694:

• Medium Bronze Painted

696:

• Satin Brass Painted

BSP:

• Black Suede Powder Coat

WSP:

• White Suede Powder Coat

• *600 is a special rust-inhibiting prime coat. Closers can be ordered prime coat only (specify closer x 600). An additional charge applies if finish coat is required over prime coat (ex: 51 x 600 x 689).

• ^ Available on arms only.
