Features
Use With
Cylindrical and Mortise Latchbolts and Deadbolts
Grade
Grade 1
Color
Dark Oxidized Satin Bronze Oil Rubbed
Color Code
613/US10B
Function
Field Selectable (Safe/Secure)
Fire Rated
3 Hours {A}, Yes
Amp Draw
.24 Amps at 12VDC, .12 Amps at 24VDC
Burglar Rated
Yes
Faceplate Shape
Flat Face, Square Corners
Faceplate Size
4-7/8 In. X 1-1/4 In.
Frame Application
Metal or Wood
Frame Depth
1-5/8 In.
Operating Voltage
12VDC/24VDC
Package Qty
1
Special Marks
Fire rated 3 Hours {A}
Base Material
Bronze
Switch Type
Dual Lock Monitors
Product Depth
1-5/8 Inch
Static Strength
1500 lbs.
Manufacturer Parent
Assa Abloy
Finish Description
Dark Oxidized Satin Bronze
For Use With
All Brands of Cylindrical and Mortise Locksets With a Deadbolt
Product Width
1-5/8 Inch Body, 1-1/4 Inch Faceplate
Faceplate Dimension
4-7/8" x 1-1/4"
Sub-Series
HES-1600CDB-DLM
Product Height
4-7/8 Inch
Application
Metal or Wood Frame
Function Family
Electric Strike
Standards
ANSI/BHMA A156.31, Grade 1; UL 1034 Listed; UL 294 Listed; RoHS Compliant; UL 10C Listed; CAN/ULC-S104 Fire Door Conformant; NFPA-252 Fire Door Compliant; ASTM-E152 Fire Door Compliant; California Fire Marshal Listed; ANSI/SDI A250.13; ANSI-ASTM E330
Voltage
12/24 VDC
Product Type
Electric Strike
Electric Options
DLM-Dual Lock Monitors
Features
Tamper Resistant; Field Selectable Fail Safe/Fail Secure; Non-Handed; Interchangeable Faceplates and Accessories; Field Replaceable Components; Fully Finished Faceplate, Keeper, Case and Trim; Field Adjustable Integrated Shim
Product Material
Stainless steel
Strength
1500 (Static); 70 (Dynamic) lb; ft-lb
Duty
Selectable Fail Safe/Fail Secure
Current Draw
240mA; 120mA
Warranty
SecuriCare 5 Year
Series
1600 Series
Included Components

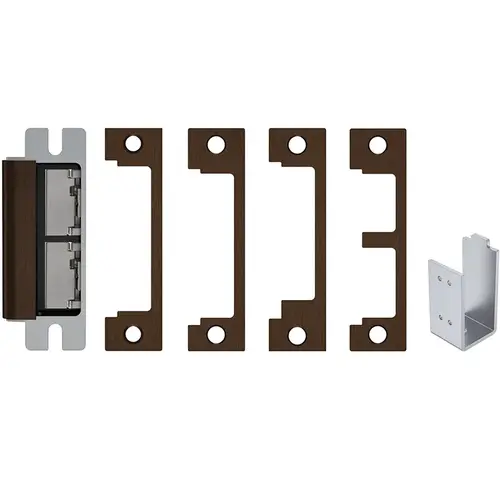

Kit includes faceplates and brackets to make 1N, 1ND, 1NM and 1NTD options.
Finish Family
Dark Bronze
Dynamic Strength
70 Foot-Lbs.
Finish
613E - Dark Oxidized Satin Bronze
Faceplate
4-1/8"
Model
1600-CDB-DLM - Complete Electric Strike Pac and Dual Lock Monitors
Door Type
Metal, Wood
Electronic
Yes
Holding Force
1500
Substrate Type
Stainless Steel
Product Width
1-3/4"
Lock Type
Mortise or Cylindrical
Preload Capable
No
Fail Safe / Fail Secure
Field Selectable
Endurance Cycles
1,000,000
Door Strike
1-5/8"
Latch Specification
Deadbolt
Outdoor Rated
Yes
Shim
Field adjustable
Windstorm Rated
Yes
Product Overview
Electric Strike, For Cylindrical or Mortise Latchbolt and Deadbolt Locks, Auto-sensing 12-24VDC, Field Selectable Fail Safe/Fail Secure, Includes 1N, 1ND, 1NM, 1NTD Options, Dual Lock Monitor, Dark Oxidized Satin Bronze
The HES 1600 Series heavy duty electric strike is the most advanced electric strike available on the market for cylindrical latchbolt and deadbolt locks. It accommodates up to a 1" deadbolt with enhanced vertical cavity spacing and will accommodate every brand of cylindrical or mortise lock designed to work with a 4-7/8" strike plate.
The most advanced electric strike available on the market for cylindrical latchbolt and deadbolt locks.
The 1600 Series accommodates up to a 1" deadbolt with enhanced vertical cavity spacing and will accommodate every brand of cylindrical or mortise lock designed to work with a 4-7/8" strike plate.
