Features
- Closers for interior and exterior doors shall be full rack-and-pinion type with cast aluminum alloy shell.
- Exceeds 25 Million Cycles Based on Internal Cycle Testing
- Non Handed for Easy Installation
- Closers shall be surface mounted and shall project no more that 2-7/8" from the surface of the door.
- Closers shall be non-handed to permit installation on doors of either hand.
- Rack and Pinion Design
- Corrosion Resistant Model
- Closer fluid shall contain lubricity and anti-oxidation agents.
- Closer fluid shall maintain stable viscosity to allow door closer to perform in temperatures ranging from extremely high to as low as -40°F.
- Molded Plastic Cover
- Closers shall have multi-size spring power adjustment to permit setting of spring from (1 through 4) or (3 through 6).
- Closers shall have two non-critical valves, hex key adjusted, to independently regulate sweep and latch speed.
- Closers shall have adjustable backcheck cushioning controlled by a hex key adjusted valve.
- [Closers shall have adjustable delayed-action closing controlled by a hex key adjustable valve.]
- [Closer body shall be enclosed in/concealed with a full molded cover.]
- [Closers shall be highly corrosion resistant and shall have all external body components of aluminum, zinc alloy or stainless steel material and all stainless steel fasteners.]
- Regular arm and top jamb closers shall have a non-hold open shoe permitting 15% ( +/- 7-1/2% ) power adjustment. ** [1601] [1601BF] [1601SS].
Finish
Black
Base Material
VARIES
Special Marks
Fire rated 3 Hours {A}
Package Qty
1
Mounting Location
Push or Pull Side
Cold Weather Fluid
Yes
Case Width
11.5"
Case Volume
1539.5625
Case Height
10.5"
Back Check
Adjustable
Package Width
5"
Package Volume
218.75
Package Length
12.5"
Package Height
3.5"
BAA Qualified
Yes
Closer Size
Adj. 1 to 6
Origin
USA
Fire Rated
3 Hours {A}
Arm Type
Regular Arm
Mounting Style
Tri Mount
Case Length
12.75"
Color Code
693
Color
Black Painted
Hand
Non-Handed
Type
Surface
Application
Tri-Packed
Grade
Grade 1
Function
Regular
Series
1600 Series
UNSPSC
31162800
Dimension
2-3/8" x 9-3/4" x 2-7/8"
Material
Cast Aluminum
Spring Size
Adjustable 1-6 Size
Hold Open
No
Manufacturer Warranty
Limited 15 Year Warranty
UL Listing Type
UL / cUL / UL10C Listed
Closer Type
Surface Mounted Closer
Hazardous Material
No
Finish code
693
No of inners
1
Mounting Hole Pattern
3/4" x 9-1/16" Rectangular Mounting
ANSI/BHMA Standards
ANSI/BHMA Grade 1
Door Weight
250 lbs.
Spring Type
Fixed Size
Cover Type
Optional
Arm
Non-Hold Open - Regular, parallel or top jamb to 3" reveal
Duty Level
Heavy Duty
Hold Open Feature
Yes
Traffic Rating
Moderate Traffic
Through-Bolts and Grommet Nuts
Not Included
Package Quantity
1
UL Listed
Yes
ADA Compliant
YES
Commercial/Residential
Commercial
Door Handing
Non Handed
Interior/Exterior
Interior/Exterior
Hardware Included
Hardware Included
Security Grade
ANSI Grade 1
Adjustable
True
Mount Type
Parallel Arm, Regular Arm, Top Jamb
MADE IN THE USA
Yes
GSA Approved
No
AbilityOne
No
TAA/BAA Compliant
Yes
Lever/Pull Included
False
Hex Key Dogging
False
Product Overview

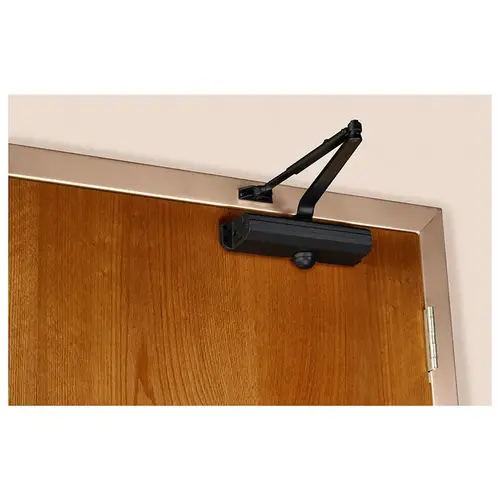

NORTON 1600 SERIES ALUMINUM STOREFRONT DOOR CLOSER
The Norton 1601 Door Closer is a top-quality, reliable product that beats the competition. It's perfect for any medium traffic commercial application, whether indoors or outdoors. The aluminum door closer comes with regular and heavy-duty arms, brackets, and options to make it adaptable to any situation. With more than 25 million cycles, it is built to last. This non-handed door closer uses a rack-and-pinion design and a cast aluminum body to ensure a smooth operation. It has staked valves and standard, separate and independent, latch, sweep, and backcheck intensity valves. The door closer comes with a 30-year limited warranty and is available with a molded plastic cover or as a corrosion-resistant model (non-hold open only). The 1600 Series door closer has a 2-7/8" (73mm) projection and a 1-3/8" (35mm) diameter piston. The 5/8" (16mm) diameter pinion journals make it easy to install using tri-style packaging. This Norton door closer is compatible with regular arm, top jamb, and parallel arm mounting and makes a reliable, long-lasting choice that provides peace of mind for any commercial property owner.
PRODUCT FEATURES- Exceeds 25 million cycles
- Non-handed
- Rack-and-pinion design
- Cast aluminum closer body
- 2-7/8" (73mm) projection
- 1-3/8" (35mm) diameter piston
- 5/8" (16mm) diameter pinion journals
- Tri-Style packaging (regular arm, top jamb and parallel arm mounting)
- All standard arm applications allow doors to swing 180 degree, conditions permitting
- Staked valves
- Heavy-duty arms: Parallel Rigid, CloserPlus , CloserPlus Spring , and Unitrol
- Standard, separate and independent, latch, sweep and backcheck intensity valves
- 30-year limited warranty
OPTIONAL FEATURES
- Molded plastic cover - specify suffix P
- Corrosion-resistant model (non-hold open only) - specify 1601SS (not tri-packed)
- Constructed with robust materials and internal components
- One package covers regular, top jamb, and parallel arm mounting
- Staking limits ability to accidentally back out the valve while adjusting closer
- Arm configurations meet broad range of applications
- Complete offering of mounting plates and brackets to meet specific application needs
- Stringent testing supports a long-life of reliability
- Proprietary lubricate delivers optimal performance and efficiency
- Closer Type:Surface
- Maximum Door Weight:250 lbs
- Traffic Rating:Moderate Traffic
- Warranty:30-year limited warranty
- ANSI/BHMA A156.4, Grade 1 certified
- UL / cUL listed for use on fire rated doors
- UL10C listed for positive pressure fire test
- Manufactured in an ISO 9001 and ISO 14001 certified facility
- 1601 door closers are designed to comply with requirements for
- the Americans with Disabilities Act (A.D.A) and ANSI standard A117.1
- UL certification environmental product declaration
CAUTION: Door Closers for Low Opening Force Applications
Door closers installed in openings required to meet the requirements of the Americans With Disabilities Act or ANSI/BHMA Standard A117.1, when adjusted to meet those requirements, may not provide adequate closing power to dependably close and latch the door based on opening or site conditions
