Features
Voltage
24 VAC/VDC
Mounting Type
Wood Frames
Hand
Reversible-Non Handed
Warranty
Limited Warranty-36 Months
Color Code
628/US28
Function
Electric Strike
Strength
1000 lbs. (454 KG)
Current Draw
24 VAC; 24 VDC
Finish Description
Satin Aluminum
Faceplate Shape
Ansi Faceplate
Keeper Size
1/2" Maximum Latch Projection Possible With 1/8" Door/Frame Clearance - 3/4"
Finish Family
Aluminum
Product Material
Steel Faceplate
Duty
Fail-Secure
Faceplate Dimension
4-7/8" x 1-1/4"
Function Family
Electric Strike
Features
Adjustable Keeper; Depth - 1/2" Max Latch Projection Possible With 1/8" Door/Frame Clearance - 3/4"
Product Type
Electric Strike
Series
1700 Series
Manufacturer Parent
ROFU Security International
Sub-Series
1702-07-28
Finish
Satin Aluminum (US28)
Faceplate
4-7/8"
Electronic
Yes
Fail Safe / Fail Secure
Fail-Secure
Product Overview

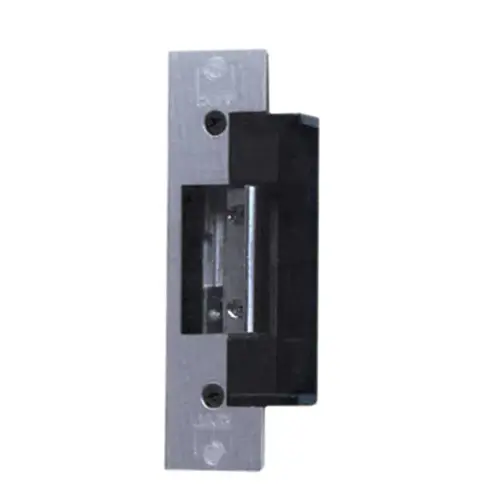

The ROFU 1700 Series 1702-07 Electric Strike provides access control for doors, featuring a fail-secure mechanism that keeps the door locked during power loss. It operates on 24 VAC or 24 VDC, with continuous duty for VDC and intermittent duty (not exceeding 10 seconds) for VAC. The strike includes an adjustable keeper to accommodate door misalignment, and an anodized aluminum faceplate with a US28 aluminum finish. Designed for hollow metal, aluminum, or wood frames, it has a faceplate measuring 1-1/4" x 4-7/8". This non-handed, reversible unit offers a static holding force of 1000 lbs and is rated for 500,000 cycles. The full manufacturer part number is 1702-07 US28.
