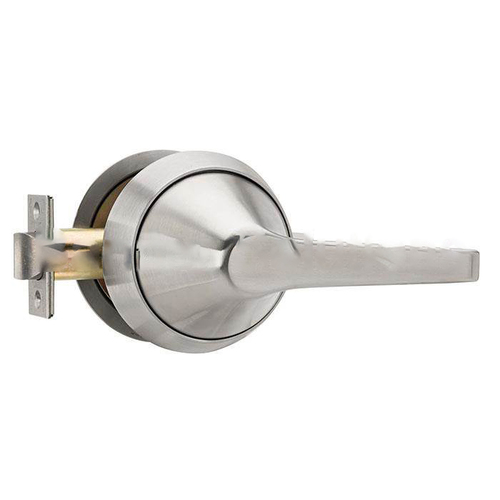

195SSN LifeSaver Passage Lever Lockset Satin Stainless Steel

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Marks 195SSN/32D 195SSN LifeSaver Passage Lever Lockset Satin Stainless Steel

Item #: 195SSN/32D by Marks

See reviewsSee reviews
In Stock

$381.19

/each
SAVE UP TO 38.12

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Color

Satin Stainless Steel

Finish

Satin Stainless Steel

Grade

ANSI/BHMA Grade 1

Backset

2-3/4 Inch

Function

N-Passage

Strike

ANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner

Finish Description

Satin Stainless Steel

Lever Style

195SS-LifeSaver

Rose/Escutcheon Trim

Round Rose

Product Type

Cylindrical Lock

Series

195SS Series

Projection

2.5625

Bore Size

2.1250

Door Thickness

1-3/4 inch

ADA Approved

False

Warranty

Lifetime mechanical

Color Code

630/US32D

Handle Type

Lever

Rose Diameter

3-13/16 Inch

Door Cross Bore

2.125 Inch

Standards

ANSI/BHMA A156.2; UL and CUL Listed

Function Description

Latch retracted by knobs/levers at all times

Function Family

Passage/Hall/Closet

Product Projection

2-9/16 Inch

Trim Material

Solid Cast Stainless Steel

Features

Through Bolted Spring Loaded Rose; Stainless Steel Retractor

ANSI Function

F75

Latch Number

1834

Strike Number

1135

Strike Type

ASA Curved Lip

ADA Compliant

YES

Finish Family

Stainless Steel

Manufacturer Parent

Napco Security Technologies

Knob/Lever Size

4-3/4 Inch

Anti_Ligature

true

Sub-Series

195SSN-32D

Strike Size

4-7/8 Inch

Alternate Part Number-1

173826

Product Overview
195SS Series Institutional Life Safety Cylindrical Locksets Certification:
  • ANSI-A156.2 Grade 1, UL listed 3 Hr. Fire Rating
Features: Backset
  • 2-3/4” Standard (2-3/8”, 3-3/4”, 5” Available)
Latch #1834
  • Stainless steel nose
Levers
  • Solid cast stainless steel. Levers Rotate up & down freely in locked or unlocked position
  • Levers recessed into solid stainless steel roses eliminating any open gap
Roses
  • Thru-bolted, spring loaded, #10 thru-bolts
Strike
  • #1135, 4-7/8” ASA curved lip strike
Door thickness
  • 1-5/8” to 1-7/8”
Cylinder
  • MARKS “C” keyway, 6 pin w/ 2 keys
  • Stainless steel retractor
  • Clutch
Standard & Hi-Security IC Core Models
  • Interchangeable Core models for 6 or 7 pin cores (not included). Accepts: Marks, Marks HI-SECURITY™, Medeco® , KeyMark™, Falcon, Schlage® small format & Best®. IC Core Tailpieces are included. When ordering IC Core Cyclinder, add prefix "R" to the part number.
  • Levers recessed into solid stainless steel roses eliminating any open gap
Warranty
  • Lifetime mechanical warranty
