Features
Sub-Series
EDT_Concealed_Ver_Rod_Devices_Falcon_9
Manufacturer Parent
Allegion
Series
1990 Crossbar
Product Type
Exit Device
Features
It is Equipped with Hardened Steel Latches and Adjustable Strike to Ensure Safety, Security and Quiet Operation
Device Trim ANSI Function
02/03/04
Function Family
Storeroom
For Door Thickness
1-3/4 Inch
Device Trim Function
Pull and Cylinder
For Door Height
7 Foot
Device Bar Projection
Extended: 4-3/8 Inch; Depressed: 2-1/2 Inch
Cylinder Type Used
Rim Cylinder with 9970 Pull
Stile Width
Minimum: 1-3/4 Inch
Standards
ANSI A156.3 Grade 1; UL305 Listed
Included Components
Concealed Mounting Screws
Finish Family
Satin Chrome
ADA Compliant
No
Strike Type
PB48 Top
Dogging Options
Hex Key Dogging
Device Type
Concealed Vertical Rod Device
Finish Description
Satin Chrome
Fire Rated
No
Door Height
7 Foot (84 Inches)
Stile
Narrow Stile
Device Length
48 Inch (4 Foot)
Function
Storeroom
Color Code
626/US26D
Length
4 Foot Device
Application
Ideal for Retrofit Commercial and Retail Applications
Product Overview

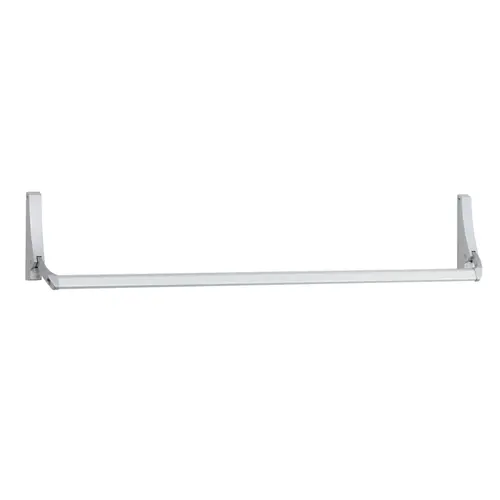

36" Concealed Vertical Rod Crossbar Exit Device with Night Latch Pull Trim with Hold Back Satin Chrome Finish
