2500/3500/3700 Series Part, Oil Rubbed Dark Bronze

Roll over image to zoom in

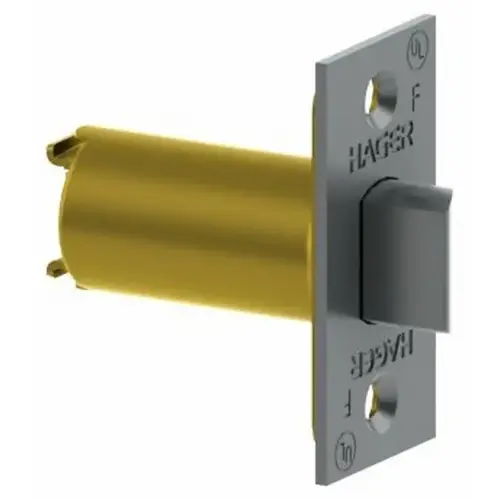

Hager 394710B 2500/3500/3700 Series Part, Oil Rubbed Dark Bronze

Item #: 394710B by Hager

See reviews See reviews

In Stock $33.05 /each

SAVE UP TO 3.30

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • Latches
  • Many Parts Are Series Specific
  • Certified Hager Parts
  • Made With Strong Materials
  • Many Parts Are Finish Specific

Finish

Oil Rubbed Dark Bronze

Backset

2-3/4 Inch

Corners

Square Corner

Design

Square or Radius Corner

Finish Description

Oil Rubbed Dark Bronze

Product Type

Lock Part/Accessory

Manufacturer Parent

Hager Companies

Function

Latchbolt

Latch Type

Springlatch

Sub-Series

PA_Locks_Parts_hager_06

Corner Type

Square

ADA Compliant

No

Front Size

1-1/8" x 2-1/4"

Product Height

2-1/4 Inch

Latchbolt Size

3/4 Inch

Housing Diameter

27/32 Inch

Function Family

Part/Component

Color Code

613/US10B

Product Length

1-1/8 Inch

Finish Family

Dark Bronze

2500 Series Grade 2 lock

Hager 2500 Series Grade 2 lock is a perfect combination of value and performance and is the ideal choice of lock for typical commercial applications. The inherent value of this lock and the product offering make our 2500 Series lock a perfect choice for a stocking program. As an economical alternative to other Grade 2 cylindrical locks, it offers both dependability and affordability.

Warranty:
  • Five year warranty
Features:
  • No exposed mounting screws
  • Non-handed
  • Conventional cylinder and small format interchangeable core option available
Applications:
  • Standard duty commercial
  • Standard door prep - 2-1/8" (54 mm) diameter (bore)
  • Latch hole - 1" (25.4 mm) diameter (cross bore)
Certifications:
  • Meets BHMA ANSI A156.2, Series 4000, Grade 2
  • ADA Compliant ANSI A117.1 Accessibility Code
  • UL/cUL Listed for all functions up to 3 hours "A" label single doors
  • UL 10C Positive Pressure Related
  • UL 10B Neutral Pressure Rated
Options:
  • Lead lined
  • Tactile warning
Lever Options:
  • Archer
  • Withnell levers
Specifications: Exposed Trim:
  • Wrought brass, bronze, and stainless steel
  • Lever is zinc based, plated to match BHMA symbols
Rose Diameter:
  • 3-11/32" (85 mm)
Lock Chassis:
  • Heavy gauge steel, zinc dichromated for
    corrosion resistance
  • "Non-clutching" exterior lever on keyed functions
  • Removable thru-bolts
  • Failure to install thru-bolts and removable screw posts voids BHMA certification, UL rating, and warranty
Keys:
  • Two operating keys supplied per lock
Cylinders/Cores:
  • Brass, keyed different, Schlage C keyway standard
  • Cylinder drilled 6-pin, keyed 5-pin
  • Other keying options, including keyed 6-pin, available from the factory
  • Zero bit cylinders will be 6 pin keyed – standard
  • Small Format Interchangeable Core option available
  • SFIC uncombinated or combinated, brass 6- or 7-pin cores sold separately
Door Thickness:
  • 1-3/8" - 2" (35 mm - 51 mm)
Backset:
  • 2-3/4" (70 mm) - Standard
  • 2-3/8" (60 mm) - Optional
Latchbolt:
  • 1/2" (13 mm) throw, stainless steel
  • 1-1/8" x 2-1/4" (29 mm x 57 mm) faceplate for
    2-3/4" (70 mm) backset
  • 1" x 2-1/4" (25 mm x 57 mm) faceplate for
    2-3/8" (60 mm) backset
  • Deadlocking latchbolt prevents manipulation when door is closed; keyed functions and 25 function only
Strike:
  • 3935 ASA 1-1/4" x 4-7/8" (32 mm x 124 mm) strike standard
  • Optional strikes available
Function:
  • 10 Passage, 17 Dummy, 25 Exit Only, 27 Back to Back Dummy, 40 Privacy, 50 Entry/Office, 53 Entry, 70 Classroom, 80 Storeroom
Notes:
  • Blank plate projection is 13/16" (21 mm) for function 25
Finishes:
  • US3, US10B, US26D
