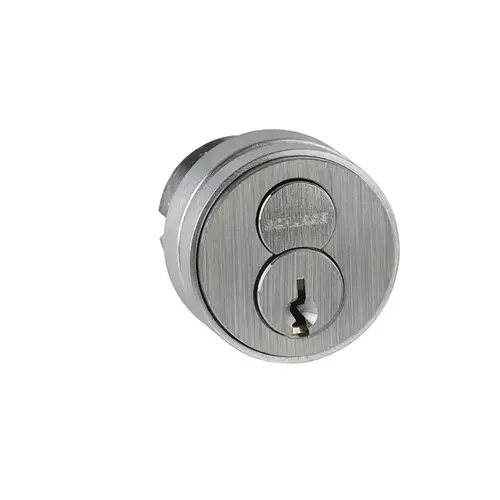

Schlage Commercial 20-061 ICA 626 1-1/2" FSIC Mortise Cylinder Construction Core, Satin Chrome

Item #: 20-061 ICA 626 by Schlage Commercial

See reviewsSee reviews
See reviews summary
In Stock

$176.42

/each
SAVE UP TO 17.64
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 161 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Certified Schlage Parts
  • NA
  • Made With Strong Materials
  • Many Parts Are Finish Specific

CAM Type

Standard Straight

Color

Satin Chrome

Color Code

626/US26D

Cylinder Type

LFIC Mortise

Cam Number

K510-730

Package Qty

1

Special Marks

Full size/large format interchangeable core

Finish

Satin Chrome

Finish Description

Satin Chrome

Product Type

Cylinder/IC Core

Keyway

Schlage ICA

Product Length

1-1/2 Inch

ADA Compliant

No

Finish Family

Satin Chrome

Included Components

Compression Ring; Spring; Blocking Ring

Standards

BHMA certified to ANSI A156.5 2001

Cylinder Cam Type

Straight

Features

Basic Security; Enhanced Security

Cylinder Length

1-1/2 Inch

Grade

ANSI/BHMA Grade 1

For Use With

Rim and Mortise Exit Devices

Function

Cylinder

Series

Mortise Cylinder 1-1/2 Inch

Manufacturer Parent

Allegion

Sub-Series

20-061-ICA-626

Material

Steel

Manufacturer Warranty

Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty

Hazardous Material

No

Finish code

626

No of inners

1

No Of Pins

6 Pin Cylinder

Product Overview
20-061Full size interchangeable cores

FSIC cylinders with straight cam for exit devices

Specifications: Core mechanism:
  • Standard pin and tumbler
Collar:
  • 3/8" blocking rings + compression ring and spring
Note:
  • All cylinders are 1 1/2" long.
