22" Tubular Spiral Non-Tilt Window Balance Red Bushing

Roll over image to zoom in

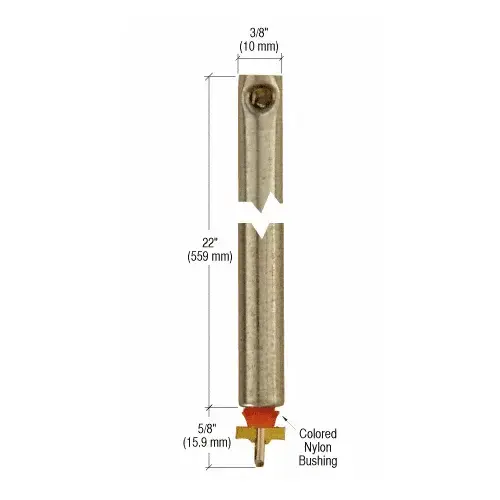

CRL FM2220 22" Tubular Spiral Non-Tilt Window Balance Red Bushing

Item #: FM2220 by CR Laurence

See reviews See reviews

In Stock $16.70 /package

SAVE UP TO 1.67

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
  • For Sash Load Weights of Up to 25 Pounds
  • Industry Standard 3/8" (10 mm) Tube Diameter
  • Will Replace Either Metal or Plastic Tube Balances

Tube Diameter

3/8

Bushing Color

Red

Tube Length

22

Window Type

Non-Tilt

Guides Attached

No

Heaviest Vent Weight Range

25


This standard duty CRL Tubular Spiral Non-Tilt Window Balance will replace a metal or plastic tube balances with a sash load capacity of up to 25 pounds. This unit will also replace spiral balances with a white bushing. While this balance is packaged and sold individually, it is our recommendation that both balances in the window be replaced at the same time.
How to Order Tubular Spiral Window Balances
  • 1. To select the proper Tubular Spiral Balance, check diameter of the metal or plastic tube on the old balance: 9/16" is Series "FJ"; 3/8" is Series "FM" or "FR", depending on the fitting at the end of the rod.
  • 2. Measure Tube Length only; do not include rod length.
  • 3. Check color of Nylon Bushing. If White or Red, select a Standard Duty Balance; if Blue, select a Heavy-Duty Balance.
  • 4. Verify if fitting on rod protruding from the Nylon Bushing matches. Select the appropriate series ("FM" or "FR") if balance diameter is 3/8".
  • 5. Order quantity required of each new balance by the catalog number.

    Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
