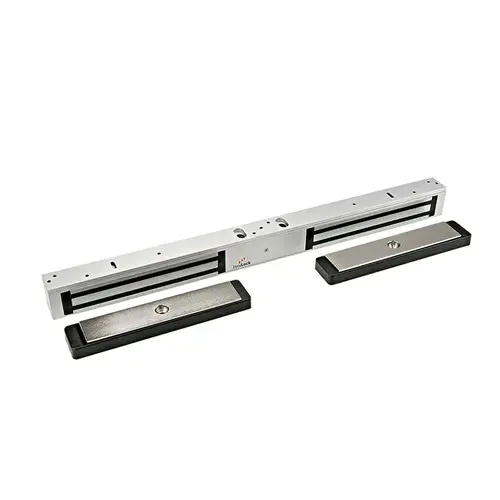

DynaLock 2282 DSM2 Double Electromagnetic Lock Outswing, Door Switch Monitor, 12/24VDC
Item #: 2282 DSM2 by DynaLock
- Economy Priced, Full Size Locks
- 12/24 VDC/VAC
- Medium to High Security
- Adjustable mounting Base
- Lifetime Warranty
Double Electromagnetic Lock Outswing, Door Switch Monitor, 12/24VDC
The new DynaLock 2280 Series joins our popular 2268 Series as an upscale, low profile 1,200 lb. holding force maglock. The 2280 features a reduced length, low profile seamless housing, milled from a solid aluminum billet. The one-piece housing offers superior resistance to moisture intrusion. An adjustable mounting plate offers staggered mounting screw holes to enhance mounted stability. Ease of wiring and selection of options is facilitated by a replaceable built-in circuit board. Incorporated in the overall design is a new high impact plastic armature housing. The housing includes concealed rare-earth disc magnets at each end, when the optional door status feature is ordered. This eliminates misorientation of the housing, when mounted. The housing fully captures the armature, eliminating the need for anti-spin pins. In addition, the housings incorporate foam pads to help dampen the sound of the armature engaging the lock face.
The 2000 Series is a full size 1200 lbs. holding force electromagnet.
This series is offered in single, double, and split armature models for both outswinging and inswinging doors.
