CRL FL2330 23" Tubular Spiral Tilt Window Balance Blue Bushing

Item #: FL2330 by CR Laurence

See reviews

Roll over image to zoom in

CRL FL2330 23" Tubular Spiral Tilt Window Balance Blue Bushing

Item #: FL2330 by CR Laurence

See reviews See reviews
The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Bushing Color

Blue

Shipping Weight

8 oz (227g)

Tube Diameter

3/8" (9.5 mm)

Tube Length

23 in (584.2 mm)

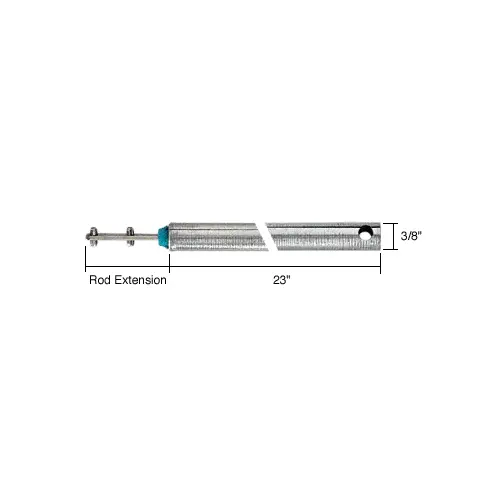

This CRL Tubular Spiral Window Balance for tilt type windows will replace a metal or plastic tube balance with a sash load capacity of up to 35 pounds (15.9 kg). While this balance is packaged and sold individually, it is our recommendation that both balances in the window be replaced at the same time.
How to Order Tubular Spiral Window Balances
  • 1. Check the tube diameter of the metal or plastic tube on the old balance.
  • 2. Measure the tube length from the end of the balance to the bottom of the colored nylon bushing only. Do not include the rod extension.
  • 3. Check the color of the nylon bushing.
  • 4. Verify that the rod extension protruding from the nylon bushing matches what is shown.
  • 5. Match tube diameter, tube length, nylon bushing color against the information shown next to the catalog number. If all agree, and the rod extension matches the one in the photo, then this is the correct balance.
