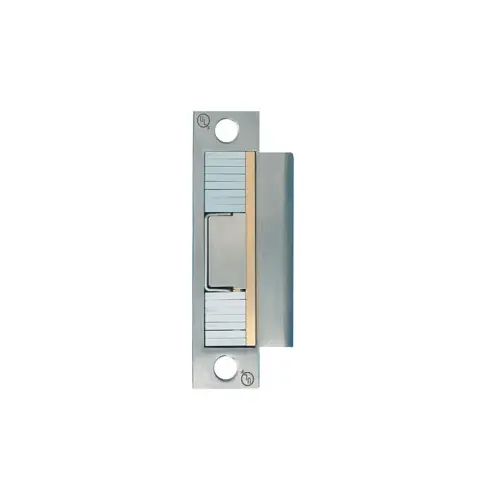

Assa Abloy Electronic Security Hardware - Securitron MUNL-24-10B 24 Volt DC Mortise Unlatch Oil Rubbed Bronze Finish
Item #: MUNL-24-10B by SECURITRON
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- MagnaCare, The Best Warranty in the Industry, Lifetime Replacement, No Fault, No Questions Asked
Finish
Oil Rubbed Bronze
Color
Dark Oxidized Satin Bronze Oil Rubbed
Color Code
613/US10B
Fire Rated
3 Hours {A}
Origin
USA
BAA Qualified
Yes
Operating Voltage
24VDC
Voltage
24V DC
Faceplate Size
4-7/8"
Access Type
Unlatch Strike
Alternate Part Number-1
156126
Faceplate Style
Square Corner
Lock Category
Mortise Lock
Dimension
4-7/8" x 1-7/8" x 2-1/4"
Use With
Mortise Locksets
Material
Stainless Steel
Manufacturer Warranty
Limited Lifetime Warranty
UL Listing Type
UL10C
Power Supply
Wired
Hazardous Material
No
Finish code
US10B
No of inners
1
Product Overview
Mortise Unlatch, 24VDC, for use with Mortise Lock, Dark Oxidized Satin Bronze Oil Rubbed
Mortise UnLatch is for any application where an electric strike would be used for a mortise type lock. The Mortise UnLatch includes field adjustability for latch and deadlatch positions, releases under pressure and includes a latch status monitoring output. No cutting or altering of the jamb required. Fail secure. Releases under preload. Fits standard ANSI 4-7/8" strike cutout. Motorized, no solenoids. Fully concealed installation. Maintains dead latch function at all times. Continuous duty. Latch status sensor is standard. Holding Force: 1500 lbs [680kg] static. Current Draw: 12 VDC-40 mA continuous, minimum 700 mA when operating. 24 VDC-40 mA continuous, minimum 500 mA when operating. Higher capacity supply (1-4As) is recommended for startup inrush to achieve best operation under pre-load. One model works with most North American Mortise Locks (Sargent 7800 and 8200 require tab kit model #STK-1 for retrofit installations).
All magnalocks include automatic dual voltage as well as collapsing blind nuts.
