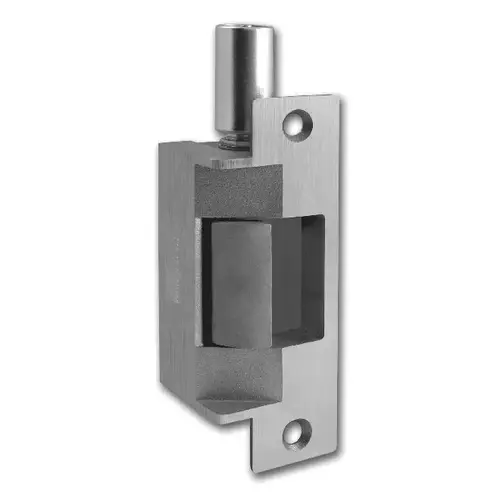

HES 712 24D 630 LBMLCM 24VDC Electric Strike with LBMLCM Latchbolt Monitor Satin Stainless Steel Finish
Item #: 712 24D 630 LBMLCM by Folger Adam
UPC #: 740090053554
In Stock $743.01 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- For Use With 1/2" To 5/8" Throw Latchbolts In Hollow Metal Frame Applications
- UL 10C fire-rated, 3 hour single door (fail secure only)
- UL 10C fire-rated, 3 hour double door fire-rated (fail secure only)
- CAN4-S104 (ULC-S104) fire door conformant
- Tamper Resistant, Heavy-Duty Construction
- UL1034, burglary-resistant listed
- UL 296 (6th Edition) listed
- Non Handed
- ANSI/BHMA A156.31, Grade 1
- New York City accepted
- NFPA-252 fire door conformant
- ASTM-E152 fire door conformant
- RoHS compliant
Finish
Satin Stainless Steel
Function
Fail Secure
Strike
24VDC Electric Strike with LBMLCM Latchbolt Monitor
Fire Rated
3 Hours {A}, Yes
Origin
USA
BAA Qualified
Yes
Package Height
2.5"
Package Length
7.5"
Package Volume
112.5
Package Width
6"
Amp Draw
0.15 AMPS
Faceplate Size
4-7/8 In. X 1-1/4 In.
Frame Application
Metal
Holding Force
1500
Keeper Size
1/2 In.
Operating Voltage
24VDC
Package Qty
1
Special Marks
Fire rated 3 Hours {A}
Base Material
Stainless Steel
Switch Type
LBMLCM
Configuration
Centered
Use With
Cylindrical Locks, Mortise Exit and Latch Locks
Grade
Grade 1
Application
Hollow Metal Frame
Color Code
630/US32D
Strength
1500 (Static); 70 (Dynamic) lb; ft-lb
Current Draw
290 mA at 12 VDC/150 mA at 24 VDC
Latch Throw
5/8 Inch
Finish Description
Satin Stainless Steel
Electric Options
LBMLCM-Latchbolt & Locking Cam Monitor
ADA Compliant
No
Finish Family
Stainless Steel
Product Material
Stainless steel
Standards
UL 10C Listed; CAN4-S104 (ULC-S104) Fire Door Conformant; UL 1034 Listed; UL 294 Listed; ANSI/BHMA A156.31, Grade 1; NFPA-252 Fire Door Conformant; ASTM-E152 Fire Door Conformant; RoHS Compliant
Faceplate Dimension
1/2"
Function Family
Electric Strike
Features
Tamper Resistant; Heavy Duty Construction; Corrosion Resistant
Product Type
Electric Strike
Voltage
24V
For Use With
Cylindrical and Mortise Lockset
Warranty
5 Year
Manufacturer Parent
Assa Abloy
Sub-Series
712-24D-630-LBMLCM
Works with cylindrical and mortise locksets without a deadbolt
The HES Folger Adam 700 series is a 3-hour fire rated, industrial grade electric strike designed for extreme heavy duty applications.
The all stainless steel construction of this device makes it ideal for high abuse applications. The HES Folger Adam 700 Series is designed to accommodate 1/2" throw latchbolts, and the HES Folger Adam 712-75 is designed to accommodate 3/4" latchbolts.*
*NOTE: These products will require relocation of the center line when used with moritse locks. Consult customer support regarding use with the Best 40 series.
- Tamper resistant, heavy duty construction
- Constructed entirely of stainless steel for strength and corrosion resistance
- Static strength 1,500 lbs
- Dynamic strength 70 ft-lbs
- Horizontally adjustable keeper allows for door and frame misalignment
- 1/2" (12.7mm) keeper depth (712 and 732)
- 3/4" (19mm) keeper depth (712-75 and 732-75)
- Non-handed
- Fail secure (standard)
- Plug-in connector
- SecuriCare five-year, no-fault, no questions asked warranty (Addition of HES SMART Pac® III extends the warranty to 10 years)
- Fail Safe
- LBMLCM Latchbolt & Locking Cam Monitor
- Strike latch guard
- Universal mounting tabs
- Wire-in bridge rectifier
- Plug-in bridge rectifier
- ElectroLynx® adapter
- SMART Pac® III
- Plug-in buzzer
- UL 10C fire rated, 3-hour single door (fail secure only)
- UL 10C fire rated, 3-hour double door (fail secure only)
- CAN4-S104 (ULC-S104) fire door confomant
- UL 1034, burglary-resistant listed
- UL 294 listed
- ANSI/BHMA A156.31, Grade 1
- NFPA-252 fire door conformant
- ASTM-E152 fire door conformant
- RoHS compliant
- 290 mA at 12 VDC/150 mA at 24 VDC
- PoE friendly
- For use with 1/2" (12.7mm) to 5/8" (15.9mm) throw latchbolts in hollow metal frame applications.
- 1/2" (12.7mm) Keeper standard
- For use with 1/2" (12.7mm)*, 5/8" (15.9mm)* or 3/4" (19mm) throw latchbolts in hollow-metal frame applications.
- 3/4" (19mm) Keeper standard
- For use with 1/2" (12.7mm)* to 5/8" (15.9mm)* throw latchbolts in wood frame applications. Features an offset solenoid.
- 1/2" (12.7mm) Keeper standard
- For use with 1/2" (12.7mm)*, 5/8" (15.9mm)* or 3/4" (19mm) throw latchbolts in wood frame applications. Features an offset solenoid.
- 3/4" (19mm) Keeper standard
- *NOTE: When using LBMLCM with a 1/2" (12.7mm) or 5/8" (15.9mm) keeper latchbolt, detection may be dependent on the door gap.
- NOTE: Electric strike compatibility is determined at time of electric strike product release. ASSA ABLOY is not responsible for incompatibility of products that have changed in design or craftsmanship by their respective manufacturers. When compatibility is a concern, contact Customer Support for application assistance.
