Panoramic, Three-Sided View Bi-Fold Transaction Window 27-3/4" W x 40" H Dark Bronze Anodized

Roll over image to zoom in

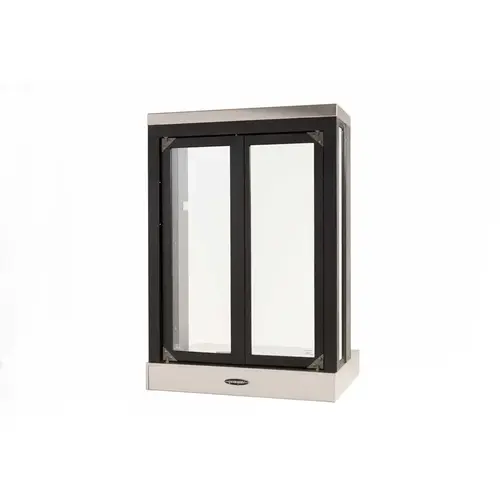

Quikserv PW-9528-BX Panoramic, Three-Sided View Bi-Fold Transaction Window 27-3/4" W x 40" H Dark Bronze Anodized

Item #: PW-9528-BX by QuikServ

See reviewsSee reviews
In Stock

$2,788.80

/each
SAVE UP TO 278.88

Buying in bulk

Special Order*Usually ships in 2-4 Weeks
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Features
  • Comes with full height service doors which improves the service opening compared to other models
  • High quality glass and metal ensure safety, stability and also the finishing of the doors
  • The thermal efficiency of the windows meets the current building regulations
  • Side bolt locks remain firmly latched and does not open with manual effort

Height

40"

Finish

Dark Bronze Anodized

Service Opening

20" x 32"

Rough Opening

28-1/8" x 40-3/8"

Width

27-3/4"

Type

PW5-16

Size

27-3/4" x 40"

Glazing

1/4" clear tempered safety glass

Boxed Weight

112 lbs.

Boxed Size

42" x 29" x 26"

Shipping

Box

Product Overview
Controlled by our patented push-bar mechanism, these bi-folding doors make allowance for a hands-free efficient means to serve your customers. These bi-fold doors are semi automatic and give the biggest service opening in projected windows. The three side view offered by this window offers panoramic view of the drive thru lane as projected from exterior side of the building

Standard Features:

  • Shipped fully assembled and ready to install
  • Warranty backed with Nationwide Service Centers
  • Locking bar and slide-bolt locks
  • 1/4" clear tempered safety glass
  • Weather-resistant and sealed to protect from the elements
  • Dark bronze or clear anodized aluminum
  • Corrosion-resistant material: Anodized aluminum and #304-#3 finish stainless steel
  • Security locking systems

Optional Features:

  • Custom colors available
  • Reduced service openings for areas requiring 432 sq. inches
  • Custom transoms and overall window sizes

Security Features:

  • Locking bar and slide-bolt locks
