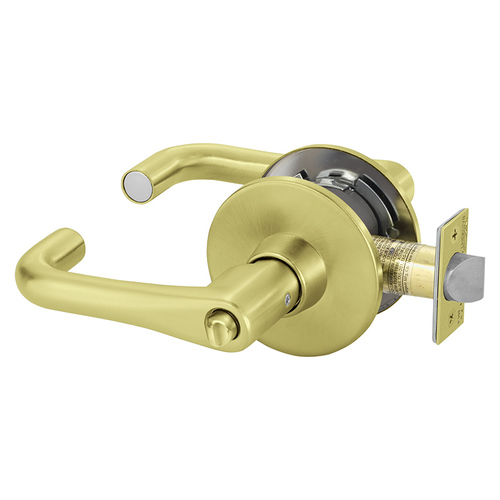

Sargent 28-11U68 LJ 4 Cylindrical Lock Satin Brass
Item #: 28-11U68 LJ 4 by Sargent
$592.56 /each
Buying in bulk
Roll over image to zoom in
Sargent 28-11U68 LJ 4 Cylindrical Lock Satin Brass
Item #: 28-11U68 LJ 4 by Sargent
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- 18 functions available, including Classroom Security; many functions are field changeable requiring no additional parts
- Integrates into most existing facility’s key systems – accepts SARGENT key systems including patented Degree® and Signature; also accepts Best® SFIC and Schlage® and Medeco® LFIC
- Retrofits any standard cylindrical lock doorprep and is non handed
- Simple cylinder removal provides easy change outs
- Made from 68% post-consumer recycled content as per LEED MR credit 4
- Available in 13 architectural grade finishes and Microshield® antimicrobial coating
- 10 year limited warranty
Thickness
1-3/4" - 2"
Strike Number
808
Package Volume
249.8203125
Latch Number
11-2111
Color
Satin Brass
Case Width
15"
Function
68-Hospital Privacy
Latch Type
Spring Latch (Unguarded)
Hand
Not Handed
Grade
Grade 1
Fire Rated
3 Hours {A}
Special Marks
Fire rated 3 Hours {A}
Dust Box
None
Strike Width
1-1/4"
Latch Backset Dim
2-3/4"
Lock Face Size
2-1/4" x 1-1/8"
Application
Extra Heavy Duty
Case Length
20.75"
Package Qty
1
Package Height
4.25"
Screws
Combination
Case Height
9"
Package Width
7.125"
Bolt Protection
1/2"
Case Volume
2801.25
Color Code
606/US4
Strike Type
ASA
Origin
USA
BAA Qualified
Yes
Rose/Escutcheon Design
L - Rose
Base Material
Brass
Strike Height
4-7/8"
Lever/Knob Design
J - Lever
Package Length
8.25"
Hospital Privacy, Grade 1, Cylindrical Lever Lock, LJ Design, Satin Brass
The SARGENT¬ 11 Line sets a higher standard for Grade 1 bored-in locks. The unique T-Zone¬ construction provides unequalled strength and durability for the most demanding applications such as schools and hospitals. This is accomplished by true interlocking between the lockbody and the latch far exceeding the 156.2 Series 4000 Grade 1 standards like no other lock can.
The SARGENT® 11 Line sets a higher standard for Grade 1 bored-in locks.
The unique T-Zone® construction provides unequalled strength and durability for the most demanding applications such as schools and hospitals.
