Features
- Door Controls: (interior) (exterior) swinging door(s) shall be cam and roller design contained within a precision cast aluminum housing.
- Door closing force shall be adjustable to ensure adequate closing control.
- Door closing speed shall be controlled by independent hydraulic adjustment valves in the sweep and latch range of the closing cycle.
- Door closer shall have an adjustable hydraulic backcheck valve to cushion the door speed if door is opened violently.
- Maximum door open shall be templated to (85°), (90°), (100°), (110°), conditions permitting.
- Door closer shall have hold open capability with an on/off selector and tension adjustment.
- Non-hold open units shall be U.L. Listed for self-closing door.
- Unit shall be in compliance with the requirements of the Americans With Disabilities Act (ADA). ANSI standards A117.1.
- Units shall meet C-UL US.
Finish
Aluminum
Function
Regular
Case Volume
2343.75
Case Height
6.25"
Back Check
Adjustable
Package Width
7"
Package Volume
1039.5
Package Length
24.75"
Package Height
6"
BAA Qualified
Yes
Origin
USA
Fire Rated
3 Hours {A}
Arm Type
Slide Track Arm Standard
Mounting Style
Slide Track
Case Length
25"
Color Code
689/US28
Color
Aluminum Painted
Hand
Non-Handed
Type
Surface
Cover
Plastic
Application
Cam Action
Base Material
VARIES
Special Marks
Fire rated 3 Hours {A}
Package Qty
1
Mounting Location
Pull Side
Case Width
15"
UNSPSC
31162800
Warranty
1 Year From Date of Purchase.
Aluminium Bottle Contents
Swinging
ProductType
Manual
Sub-Series
8501ST-689
Closer Hold-Open
false
Manufacturer Parent
Assa Abloy
Series
2800 Series
Product Type
Door Closer/Holder/Stop
Features
Exceeds 25 Million Cycles; Rack and Pinion Design; Staked Valves
Fastener Type
Self Drilling Screws
Templating
Full Size Template
Mounting Hole Size
3/4" x 12"
Function Family
Non Hold Open Door Closer
Closer Pinion Diameter
5/8 Inch
Closer Piston Diameter
1-1/4 Inch
Closer Fluid
NorGlide (R) Closer Fluid
Closer Fluid Temperature Range
Extremely High to as Low as -40° F
Closer Arm Type
Non-Hold Open Arm
Closer Arm Extension
2-1/8 Inch
Standards
Grade 1 - ANSI/BHMA A156.4; UL listed; UL10c
Closer Cover
Full Plastic Cover
Product Material
Cast Aluminum
Finish Family
Aluminum
ADA Compliant
YES
Product Width
2-1/8 Inch
Product Length
13 Inch
Product Height
2-7/8 Inch
Finish Description
Aluminum Painted
Maximum Door Opening
180°
Door Size
32" to 54" (Interior); 30" to 48" (Exterior)
Mount
Pull Side
Door Thickness
1-3/4 inch
Handing
Non-Handed
Mounting Type
Pull Side
MADE IN THE USA
No
Security Grade
ANSI Grade 1
Package Quantity
1
UL Listed
No
Door Handing
Non Handed
Hardware Included
False
Hex Key Dogging
False
AbilityOne
No
Lever/Pull Included
True
Commercial/Residential
Commercial
Hinge Type
Door Closer
Interior/Exterior
Interior/Exterior
Material
Cast Aluminum
Assembled Product Width
2.12 in.
Adjustable
True
GSA Approved
No
Mount Type
Pull Side
TAA/BAA Compliant
Yes
Grade
Grade 1
ANSI/BHMA Standards
ANSI/BHMA A156.4, Grade 1
Door Weight
250 lbs.
Spring Type
Adjustable Size
Hold Open
No
Door Application
Pull Side
Cover Type
Plastic
Duty Level
Light Duty
Add Push Side Drop Plate
Yes
Plastic Cover
Yes
Traffic Rating
High Traffic
Dimension
3" x 12-1/8"
Spring Size
Adjustable 1-6 Size
Hold Open
No
Manufacturer Warranty
Limited 10 Year Warranty
UL Listing Type
UL / cUL / UL10C Listed
Closer Type
Track Closer
Hazardous Material
No
Finish code
689
No of inners
1
Mounting Hole Pattern
1" x 11-1/8" Rectangular Mounting
Product Overview

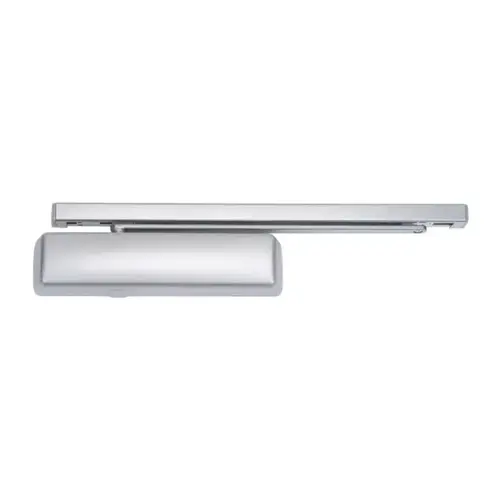

2800ST SERIES CAM ACTION DOOR CLOSER
The Norton 2800ST Cam Action Aluminum Door Closer is designed to make opening and closing doors effortless while still being tough enough to handle busy, high-traffic areas. Its sleek design adds a touch of style to any building and is perfect for architects and designers. The door closer's adjustable spring sizes and customizable closing and latching speeds make it easy to use and suitable for both interior and exterior doors. Plus, with its non-handed design and slide track application, this aluminum door closer is simple to install on either side of the door. With a maximum weight of 250 lbs and adjustable closing force, you can rest assured that your door will always close securely. And with the drop plate available, installation is even easier with this cam action door closer for your slide arm and track applications.
PRODUCT FEATURES- Cam action door closer for slide arm and track applications
- Slide track application with regular arm operating efficiency
- Adjustable spring size 1-6
- Interior or exterior doors
- Cast aluminum body
- Push or pull side installation
- Non-handed
- Standard opening range: push side = 140 degree, pull side = 110 degree
- Recommended maximum interior door width - 54"
- Maximum door weight = 250 lbs.
- Adjustable closing force
- Adjustable closing and latching speed
- Backcheck standard
- Drop plate available
- Cam action closers are designed for smooth, powerful operation with lower opening resistance
- Highest efficiency available for closer using slide tracks and arms
- Efficiency and flat power curve comply with opening force requirements of the Americans with Disabilities Act (ADA)
- Closer Type:Cam Action
- Maximum Door Weight:250 lbs
- Traffic Rating:High Traffic
- Warranty:10-year limited warranty
- ANSI/BHMA A156.4, Grade 1
- Americans with Disabilities Act (ADA) Compliant
- Trade Agreement Act (TAA)
- UL 10C positive pressure
- UL-cUL Fire-Rated Up to 3 Hours
