This configuration of the CRL285 Series Slider is used for single door applications where the top track mounts to a 3/8" or 1/2" (10 or 12 mm) fixed glass panel. Kit includes all the components you will need (except the tempered glass, channel, and pull hardware) to complete this style of installation. One "Softbrake" is required for each direction of travel to be controlled per panel. Minimum sliding panel width of 25-1/2" (650 mm) for control in a single direction; 39-3/8" (1000 mm) for control in both directions of travel. NOTE: Laminated glass should not be used.
Product Warning:
STRUCTURAL DISCLAIMER - All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers
CRL CRL28512G 285 Series Satin Anodized Glass Mount Single Slider Kit for 1/2" - 118"
Item #: CRL28512G by CR Laurence
See reviewsSee reviews
In Stock
$2,117.08
/eachSAVE UP TO 211.71
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- "Softbrake" Braking System Included
- Softbrake Braking System Included
- Single Sliding Door Kit for 1/2" (12 mm) Tempered Glass
- Maximum Weight 176 Pounds (80 kg), Maximum Panel Width 59" (1.5 m)

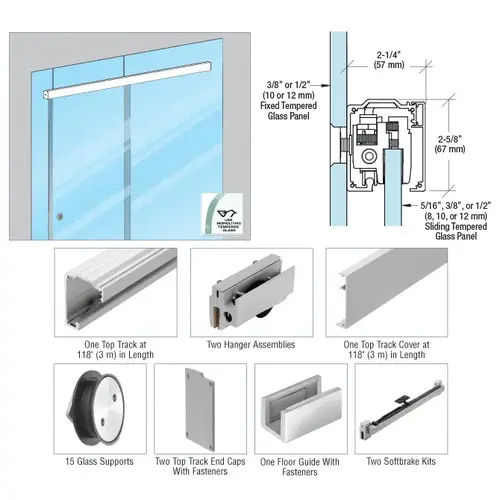

- Kits Contain All Necessary Hardware to Complete the Installation
- 118" (3000 mm) Track Length
Glass Thickness
3/8" to 1/2" (10 to 12 mm)
Finish
Satin Anodized
Track Length
118
Glazing Thickness
3/8 to 1/2
Maximum panel width
59
Finish/Color
Satin Anodized
Minimum Door Width (Inches)
25 1/2, 39 3/8
Maximum Panel Weight (Pounds)
176
Minimum Door Width
25-1/2 in., 39-3/8 in. (648 mm, 1000 mm)
Maximum Panel Weight
176 lbs. (79.8 kg)
Product Overview
This configuration of the CRL285 Series Slider is used for single door applications where the top track mounts to a 3/8" or 1/2" (10 or 12 mm) fixed glass panel. Kit includes all the components you will need (except the tempered glass, channel, and pull hardware) to complete this style of installation. One "Softbrake" is required for each direction of travel to be controlled per panel. Minimum sliding panel width of 25-1/2" (650 mm) for control in a single direction; 39-3/8" (1000 mm) for control in both directions of travel. NOTE: Laminated glass should not be used.
Product Warning:
STRUCTURAL DISCLAIMER - All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
